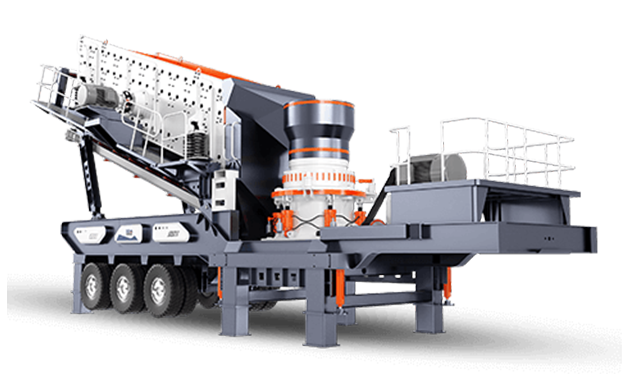

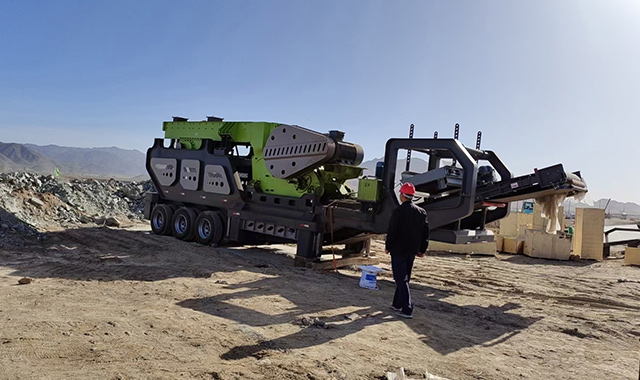

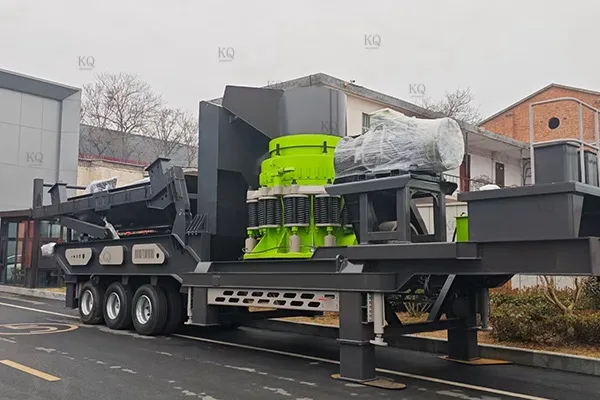

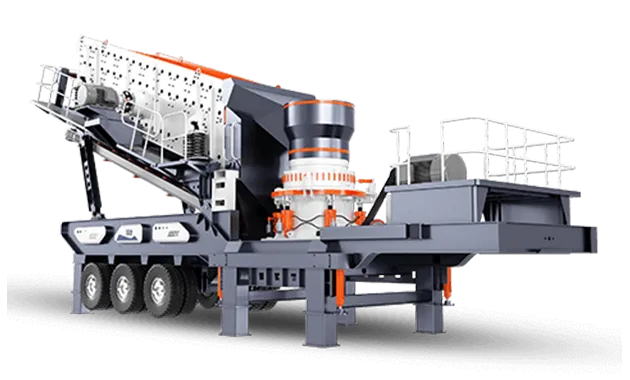

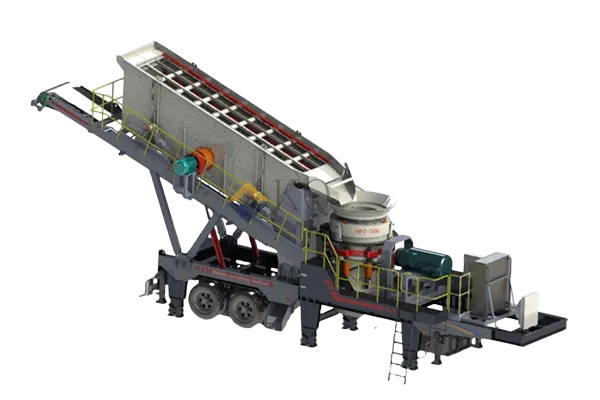

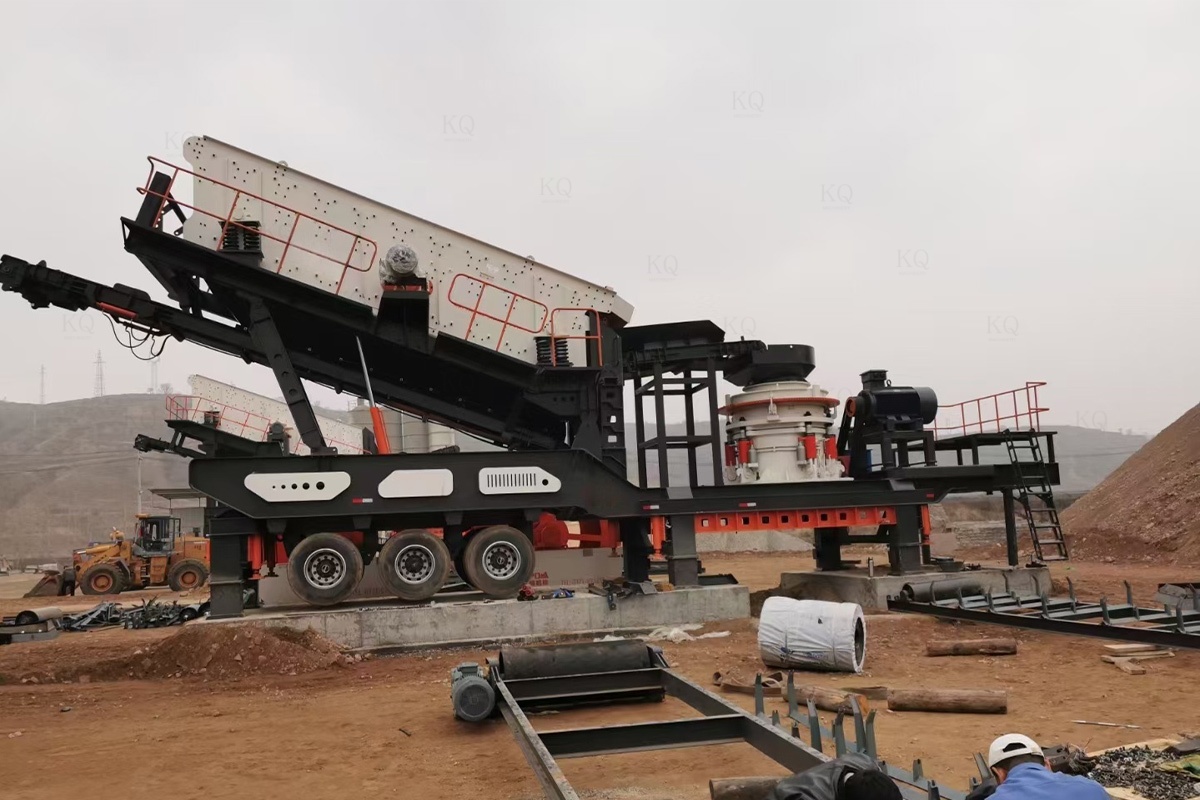

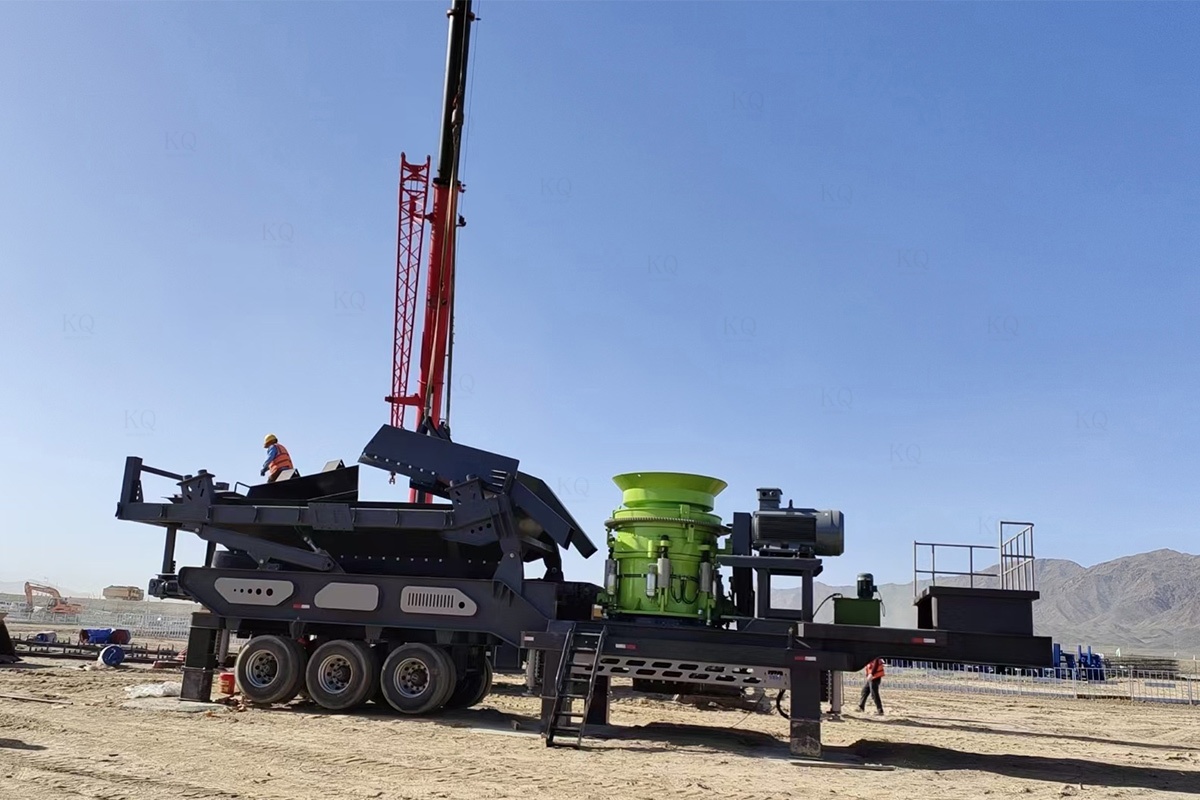

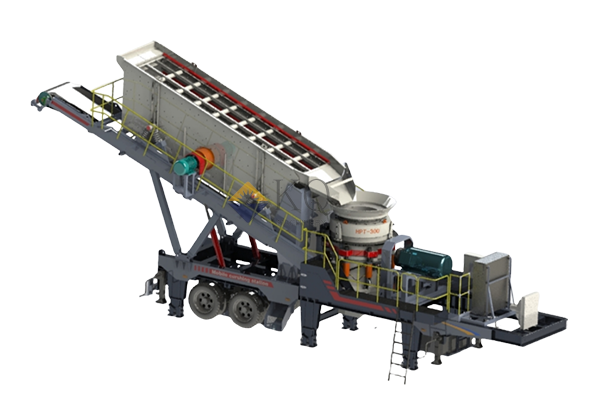

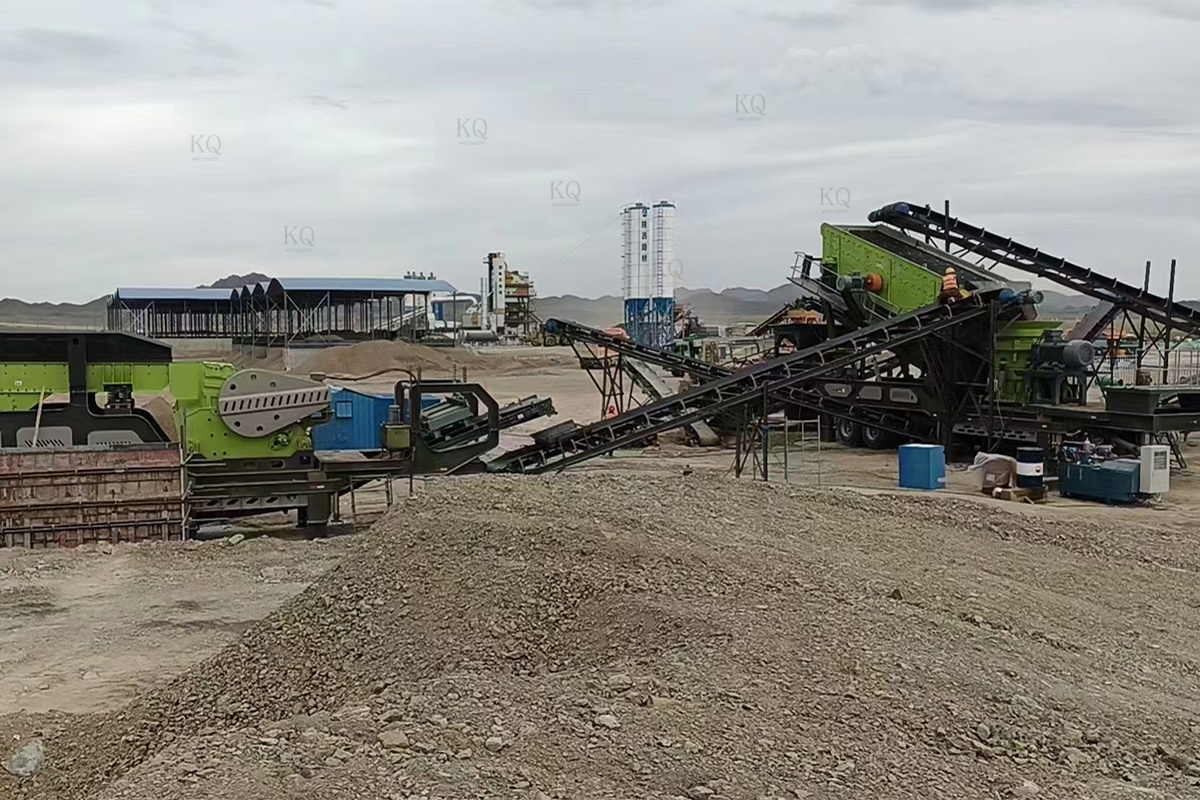

Tire Type Mobile Cone Crushing Plant

The tire-type mobile cone crushing plant adopts fully hydraulic drive chassis, equipped with four-wheel independent steering system and hydraulic outrigger stabilizer, which can realize 10-minute switching between parking and crushing modes without external traction, and the self-propelled moving speed is up to 20km/h, which is adaptable to construction sites, quarries, and other flat sites for quick transfer. The core crushing module is equipped with laminated cone mainframe, hydraulically adjustable discharge opening (8-50mm infinitely adjustable) and over-iron protection device, with a maximum capacity of 850t/h (granite conditions), and a cubic rate of ≥95% of the finished aggregate. Intelligent control center monitors the spindle pressure, lubricant temperature and current load in real time, automatically matches the feeding speed and crushing power, triggers sound and light alarms and generates fault codes for abnormal conditions, and supports 5G remote diagnosis and parameter correction. The mainframe adopts combined wear-resistant liner (life expectancy ≥ 8000 hours), hydraulic quick-disassembly structure realizes liner replacement in 30 minutes, and the integrated reclaim circulation system improves crushing efficiency by 15%. It is suitable for high abrasive materials such as basalt, iron ore, etc. The -25℃ low temperature preheating and 50℃ forced cooling ensure all-weather operation, and the single machine power consumption is as low as 1.3kW-h/ton. It can be equipped with an optional iron removal module or a three-stage screening conveyor, which can satisfy the demand for sand and gravel cogeneration and aggregate refining, and the comprehensive operation and maintenance cost is reduced by 25%.
