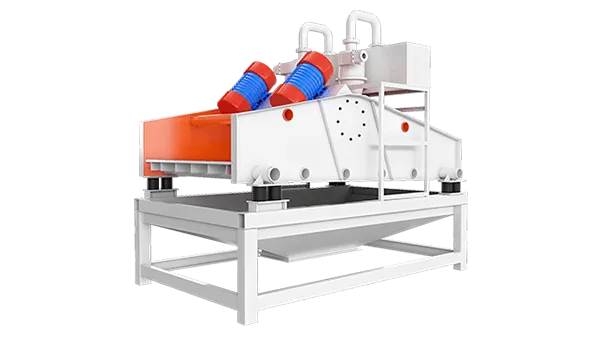

Fine Sand Recovery Machine

Application Areas: Silica sand, river sand, mechanism sand, construction waste sand, tailing sand and other fine particulate materials

5mm

Feed Size

11-75KW

Motor Power

30-300T/H

Capacity

WhatsApp: +86 13938447778 kq@kqmachinery.com

60S Quick response

30 min Technical reply

24h design proposal

365 days to receive service needs

Applicable Materials

Silica sand, river sand, mechanism sand, construction waste sand, tailing sand and other fine particulate materials
Application Areas

Natural sand and gravel aggregate, mechanism sand (crushed granite, limestone), industrial slag, construction waste recycled aggregate, special working conditions materials

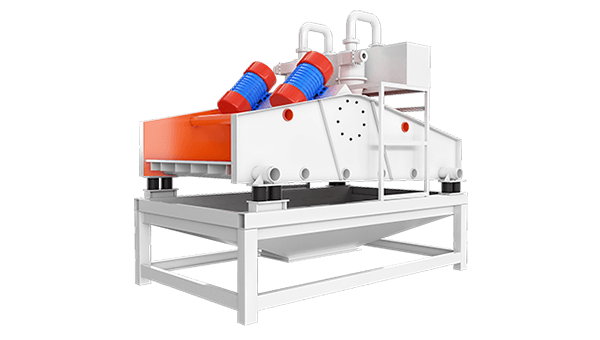

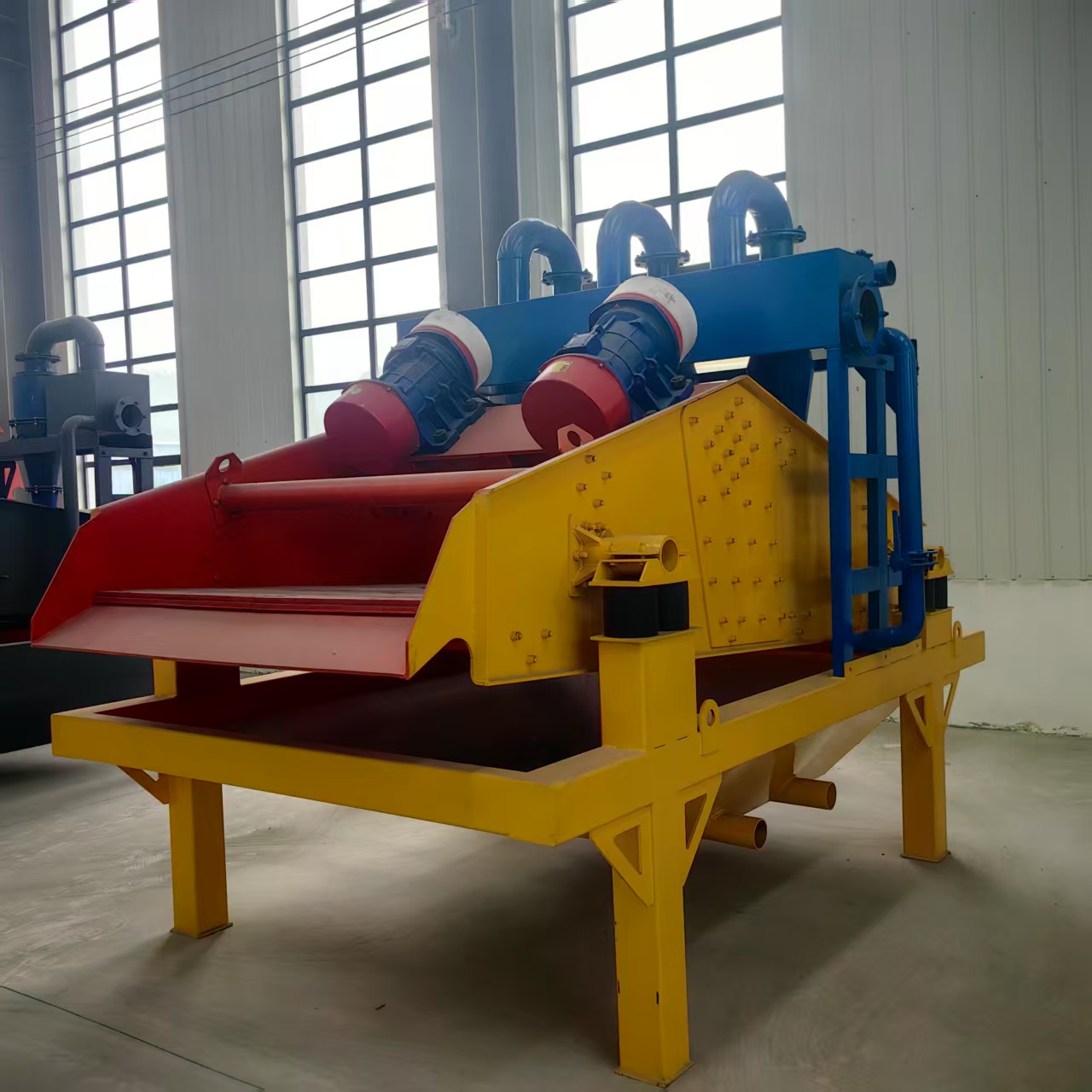

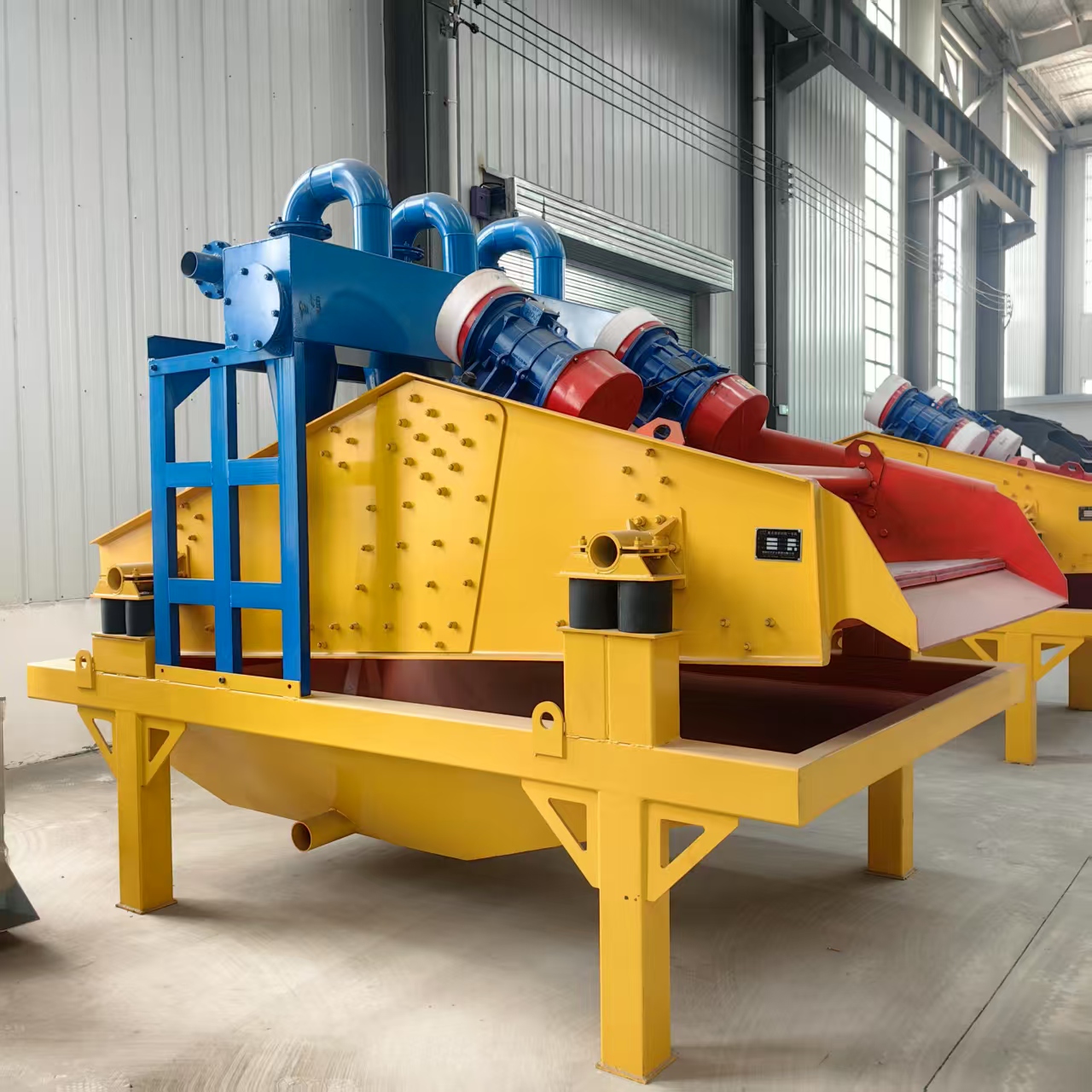

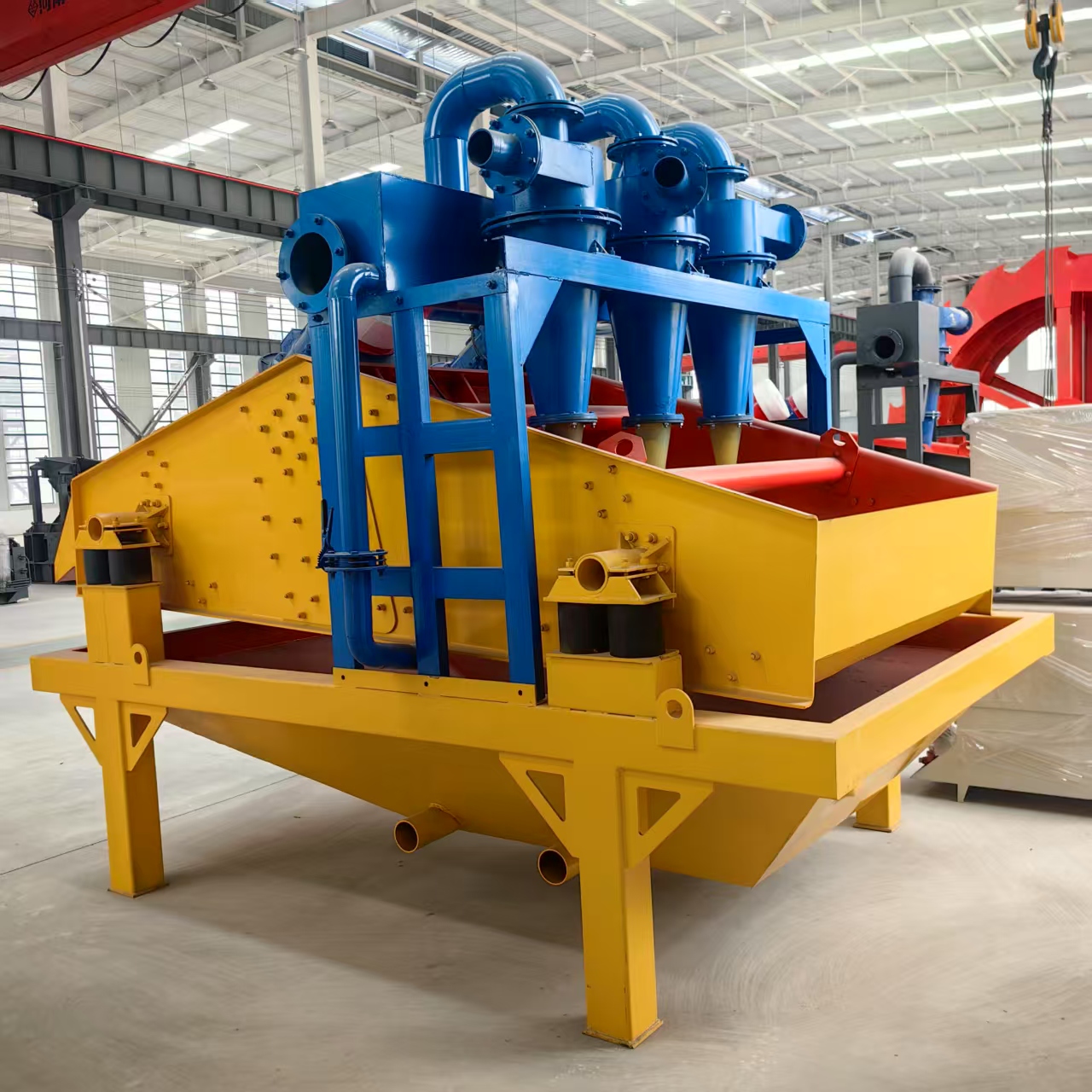

Fine Sand Recovery Machine

Fine sand recovery integrated machine is designed by our company by absorbing the advanced technology in the world and combining with the actual working conditions. It is widely used in aggregate processing system, glass factory, artificial sand production line, environmental protection engineering, mud purification and other fields. The fine sand recovery device can reasonably decompose the sand-water mixture and realize the fine sand recovery project.

Product Advantage

1. In the traditional artificial sand wet processing technology, the artificial sand washing and dewatering adopts spiral sand washing machine, and the loss of fine sand in artificial sand is almost uncontrollable. The use of fine sand recovery device can effectively reduce the loss of fine sand, so that it is controlled within 5%-10%, which is a good solution to the problem of high fineness modulus and low stone powder content of the finished sand in the artificial aggregate processing system.

2. The screen plate adopts polyurethane mesh which has a longer life than other types of screen mesh and will not block the holes.

3. Fine particles are fully recycled, which reduces the workload of sedimentation tanks and lowers the cleaning cost of sedimentation tanks.

4. The flow channel is lined with polyurethane, which improves the service life of the whole equipment and can smoothly complete the work of slurry thickening and liquid clarification.

5. 85% of the total amount of discharged fine particulate materials can be recovered at most, which has the incomparable technical and management advantages of other equipments.

6. reduce the time of material stacking, can be directly transported and supplied to the market.

Crushed product size

Have Any Questions!

Don't Hesitate To Contact Us AnyTime.

REQUEST A QUOTE Contact Us

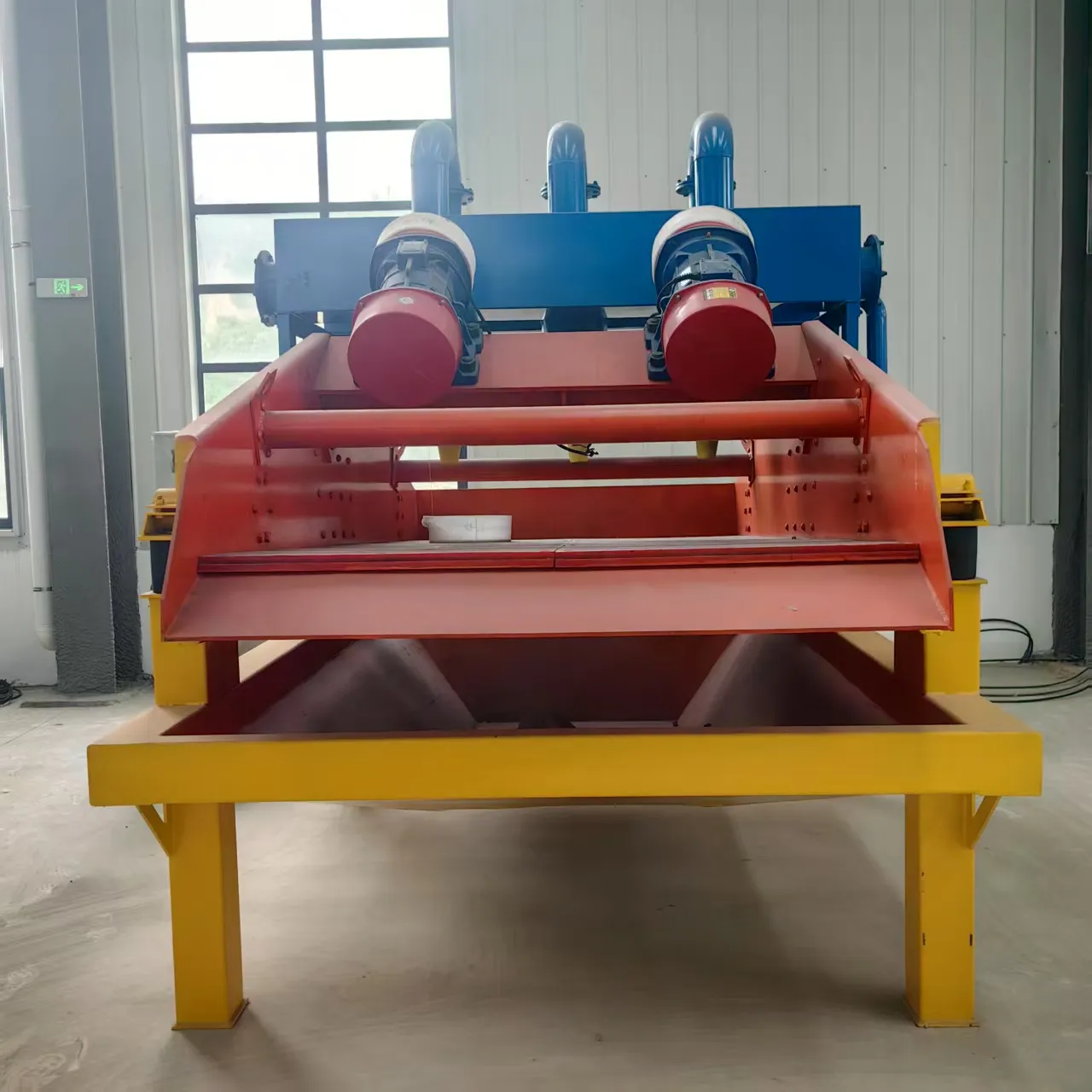

Working Principle

After the recycling machine is started, the sewage pump sends the sand-water mixture into the cyclone, and the fine sand with eccentricity is sent to the dewatering screen. After dewatering, the fine sand and water are effectively separated, and a small amount of fine sand and mud return to the washing tank. When the liquid level of the washing tank is high, the fine sand is discharged from the output port. The linear vibrating screen can recover materials with a concentration of 70%-85%, and the fineness can be adjusted by changing the rotating speed of the pump, changing the concentration of the slurry and adjusting the overflow water production.

Specification

*The output will vary according to different materials, feed particle size and other factors

Model	Separator specifications(mm)	Dehydration sieve material	Dehydration screen power(kw)	Pump motor power(kw)
BX250	250	High polymer polyurethane	2x0.55	11-17.5
BX300	300	High polymer polyurethane	2x0.75	15
BX350	350	High polymer polyurethane	2x0.75	15
BX550	550	High polymer polyurethane	2x1.1	15-22
BX650	650	High polymer polyurethane	2x1.1	18.5-30
BX750	750	High polymer polyurethane	2x1.5	37-55
BX900	900	High polymer polyurethane	2x2.2	55-65
