PC Box Crusher

Application Areas: Copper ore, gold ore, limestone, granite, basalt, slag, coal gangue, phosphorus ore, sulfur ore, cement clinker, high alumina bauxite, magnesia, quartzite, coal, waste bricks, concrete blocks and so on.

<1200mm

Feed Size

45-280kw

Motor Power

50-400t/h

Capacity

WhatsApp: +86 13938447778 kq@kqmachinery.com

60S Quick response

30 min Technical reply

24h design proposal

365 days to receive service needs

Applicable Materials

Copper ore, gold ore, limestone, granite, basalt, slag, coal gangue, phosphorus ore, sulfur ore, cement clinker, high alumina bauxite, magnesia, quartzite, coal, waste bricks, concrete blocks and so on.
Application Areas

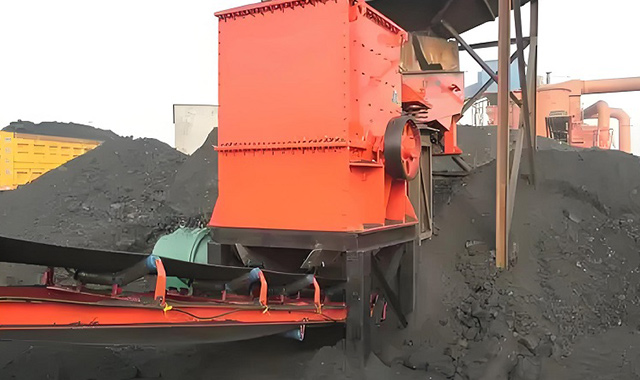

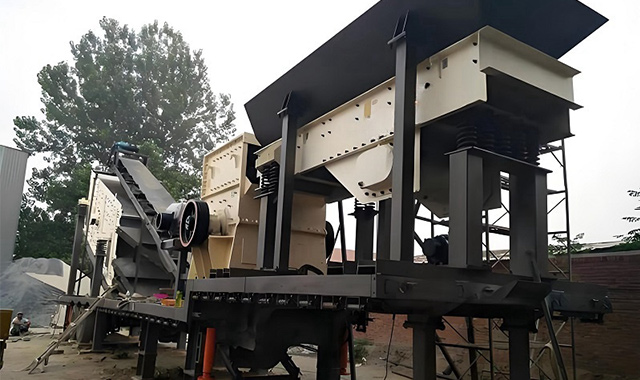

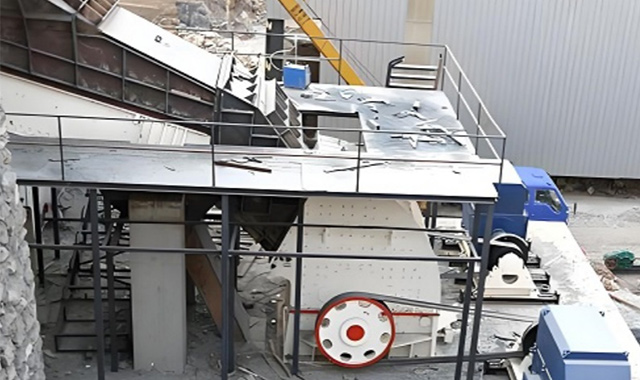

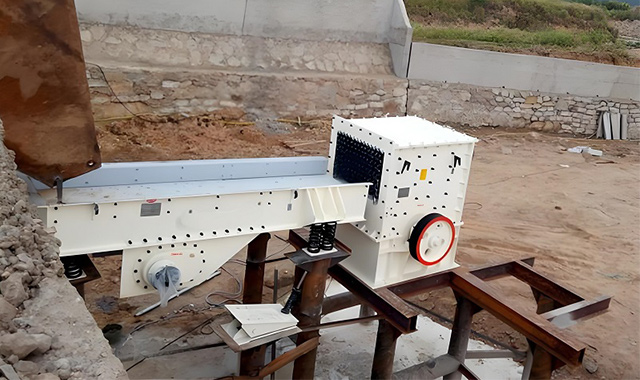

It is mainly used in mining, metallurgy and chemical industry, solid waste treatment, road construction, building materials and other industries. With the features of high efficiency, environmental protection and strong adaptability, box crusher is most widely used in resource recycling and industrial crushing scenarios.

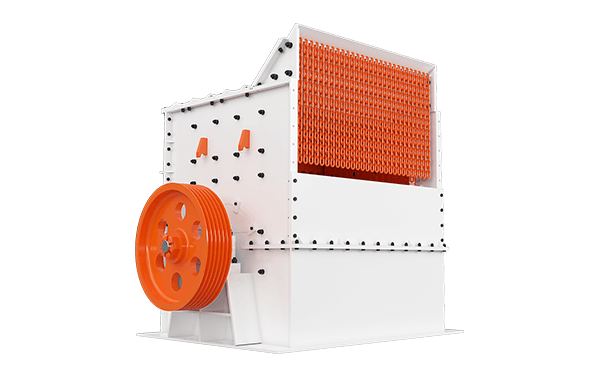

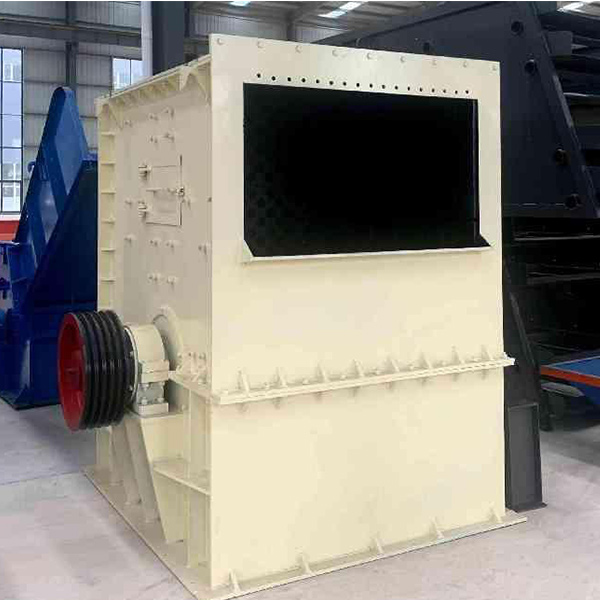

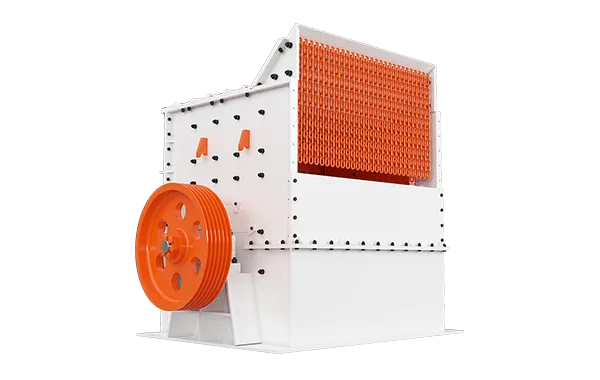

PC Box Crusher

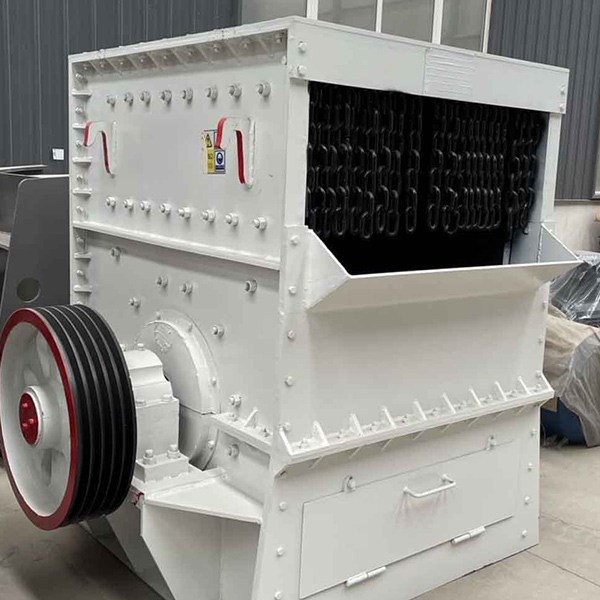

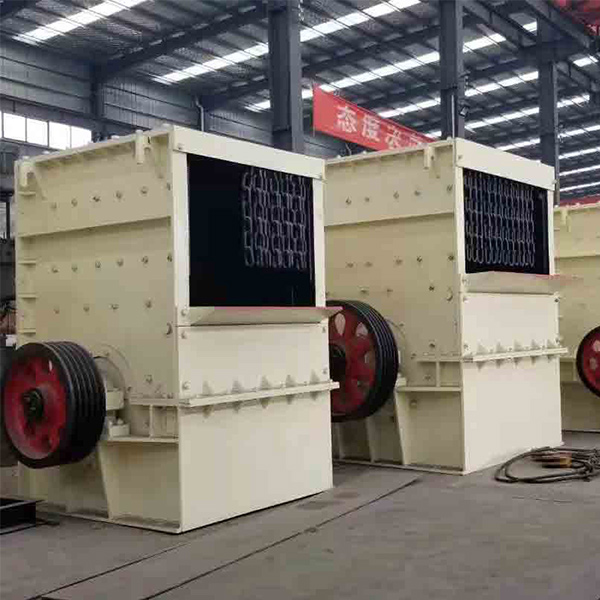

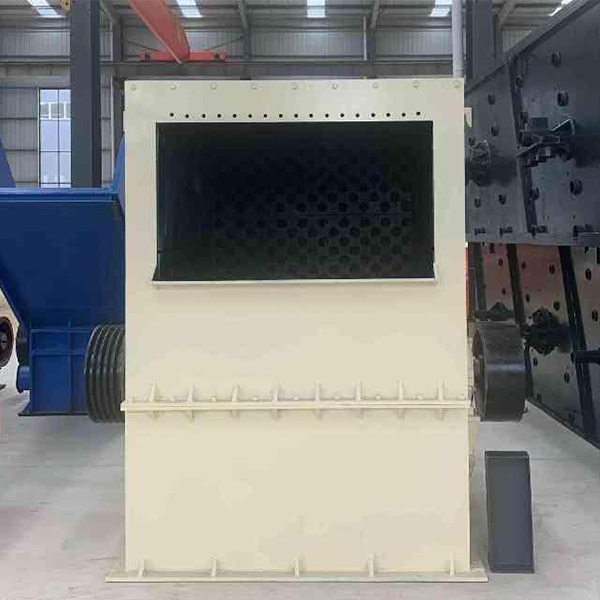

PC Box Crusher is a kind of medium and fine crushing equipment with closed box structure, which realizes high efficient crushing through the high-speed rotor driving hammer head or plate hammer impacting materials.Its features include compact structure, convenient maintenance (box can be opened and closed), good dust control, the maximum compressive strength of crushed materials does not exceed 150kg/cm, suitable for processing coal, limestone, construction waste and other medium-hardness materials, widely used in mining, building materials and solid waste recycling and other fields, both high output and environmental protection advantages.

Product Advantage

1. large feed size, large crushing ratio, uniform discharge, high output, lower energy consumption per unit than traditional jaw crusher;

2. environmental protection and noise reduction, closed box effectively suppresses dust spillage and reduces operational noise, in line with green production requirements;

3. modular design, the box can be opened and closed, easy to quickly replace the hammer head, screen plate and other wear parts, reduce downtime;

4. Rough and medium crushing can be completed in one step, simplifying the process flow;

5. hammer head, hammer plate and impact plate are made of high wear-resistant materials, longer service life;

6. strong adaptability, can be adjusted through the rotor speed, screen gap and other parameters, flexible control of the discharge size (5-50mm), to meet a variety of materials crushing needs;

Crushed product size

Have Any Questions!

Don't Hesitate To Contact Us AnyTime.

REQUEST A QUOTE Contact Us

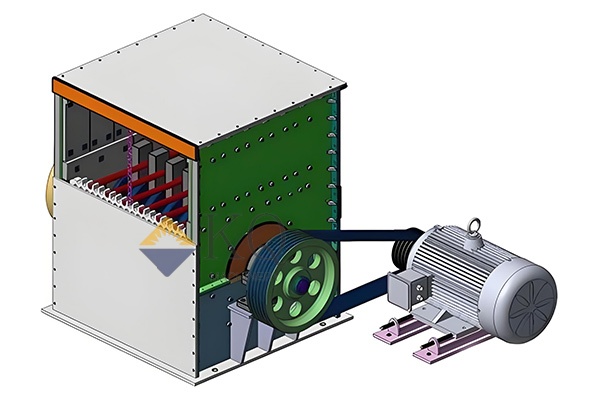

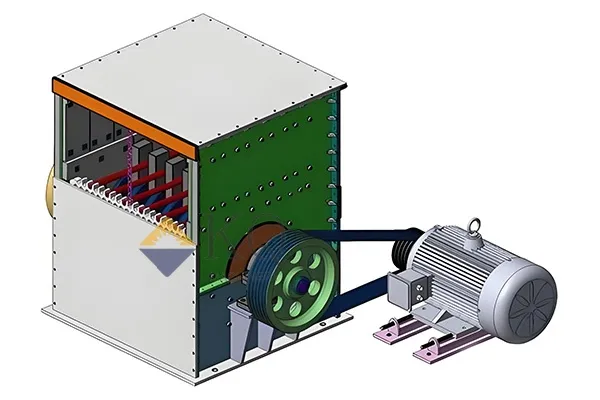

Working Principle

After the material enters into the closed box from the top inlet, the motor-driven high-speed rotor drives the hammer head or plate hammer, exerting strong impact, extrusion and grinding on the material; the crushed particles fall down under the effect of gravity, filtered through the adjustable gap screen plate at the bottom, the material that meets the requirements of the particle size is discharged, and those that are not up to the standard are rebounded to the crushing chamber to continue to be crushed, and the cycle is until it reaches the standard. The core of the machine is to realize continuous and efficient crushing process through the kinetic energy conversion of the rotor and the particle size control of the screen plate.

Specification

*The output will vary according to different materials, feed particle size and other factors

Model	Roller Diameter(mm)	Roller Length (mm)	Feeding Size(mm)	For The Type Of Stone	Capacity(t/h)	Power(kw)
700x1000	700	1000	≤500	Pressure 300MPa Various types of stone	50-80	45-55
1000x1000	1000	1000	≤800		70-100	75-90
1000x1200	1200	1000	≤800		90-120	90-110
1200x1200	1200	1200	≤900		130-160	110-132
1400x1400	1400	1400	≤1000		190-210	132-160
1600x1600	1600	1600	≤1000		250-300	160-210
1800x1800	1800	1800	≤1200		300-400	210-280
