PCD Heavy Hammer Crushers

Application Areas: It is suitable for all kinds of medium and low hardness types of rocks, such as limestone, pyroxene, copper ore, bauxite and so on.

10-100mm

Feed Size

75-1000KW

Motor Power

80-750T/H

Capacity

WhatsApp: +86 13938447778 kq@kqmachinery.com

60S Quick response

30 min Technical reply

24h design proposal

365 days to receive service needs

Applicable Materials

It is suitable for all kinds of medium and low hardness types of rocks, such as limestone, pyroxene, copper ore, bauxite and so on.
Application Areas

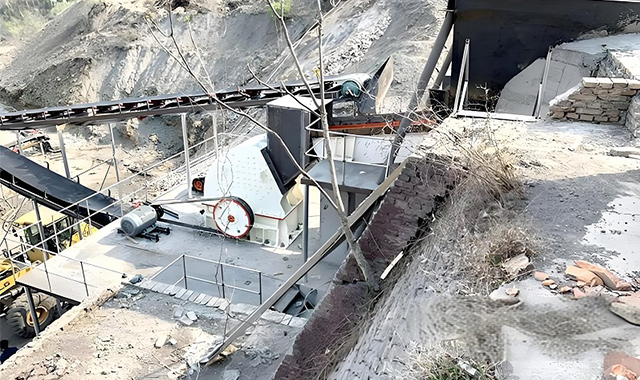

Ore crushing, railway, highway, and construction industry artificial sand and gravel production.

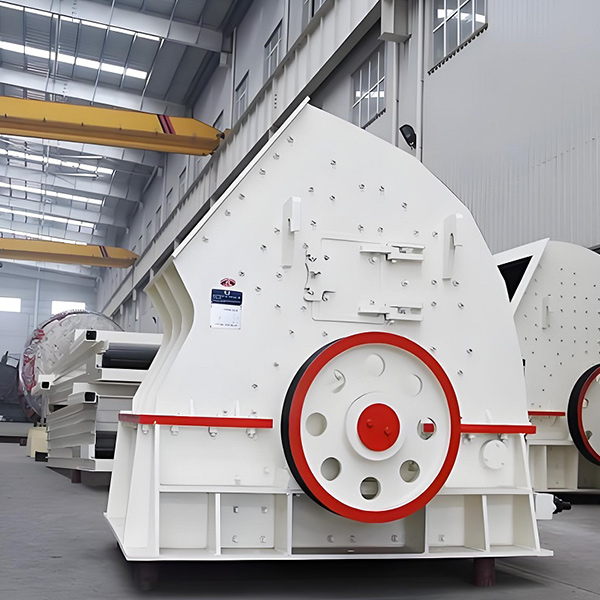

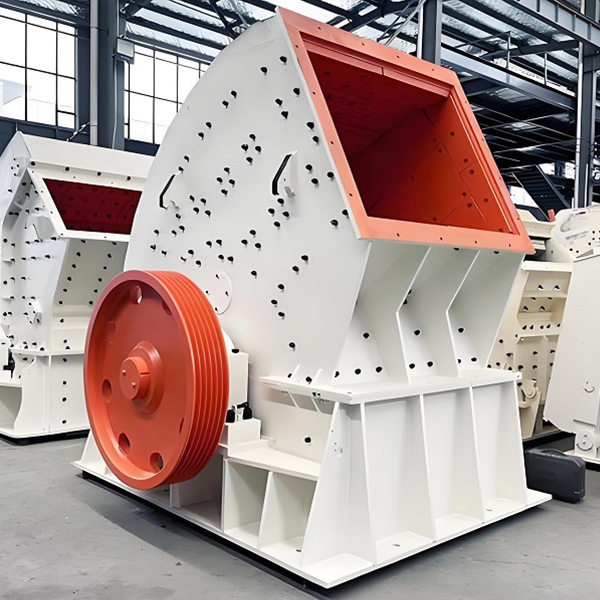

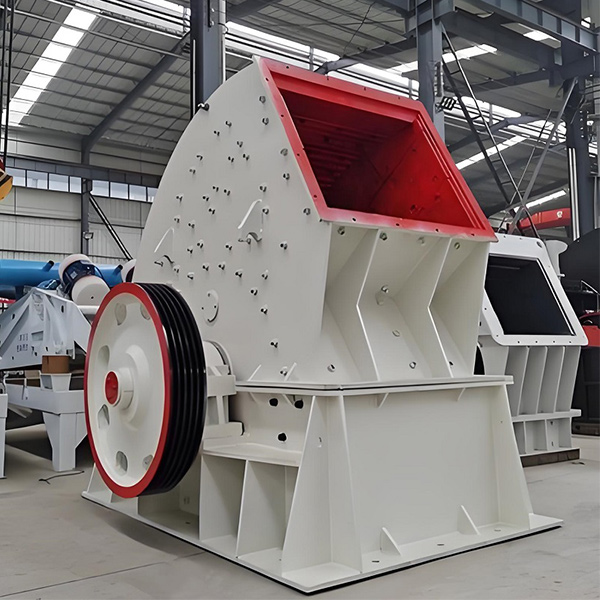

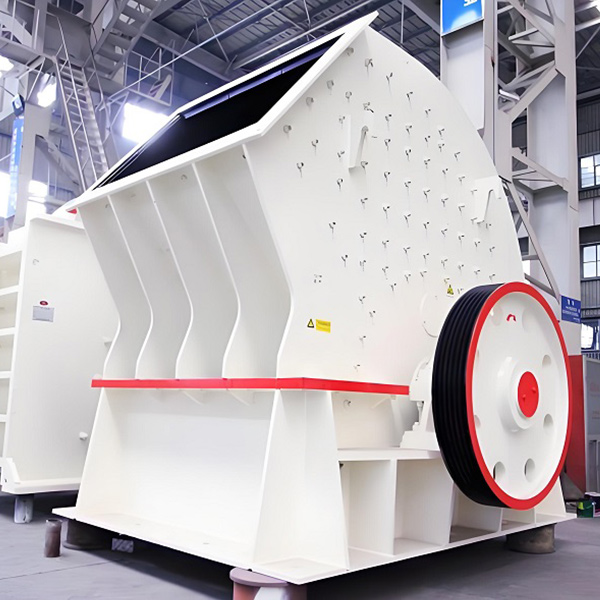

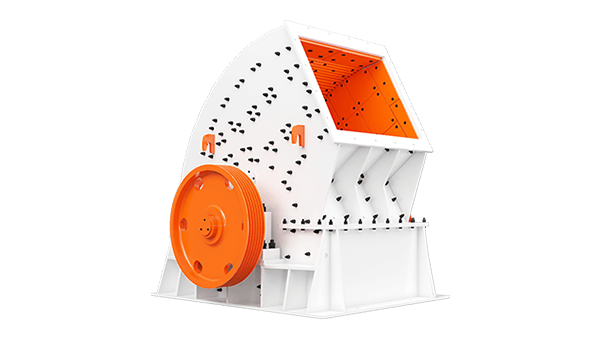

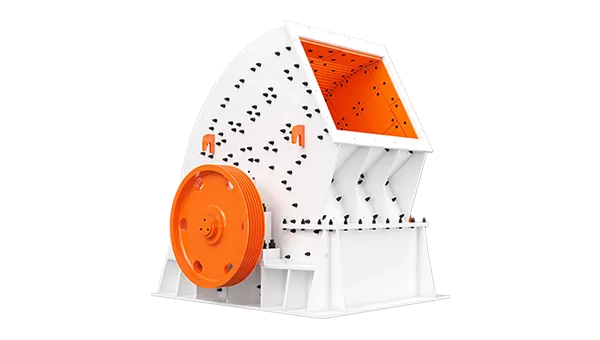

PCD Heavy Hammer Crushers

PCD heavy hammer crusher adopts high-density polycrystalline diamond composite hammer head (PCD hammer head, life expectancy ≥ 5000 hours), equipped with hydraulic opening structure and modular hammer disk quick-change system, which realizes single hammer head quick change in 30 minutes. Heavy hammer rotor (diameter 1200-1800mm, speed 750-1200rpm) combined with stepped impact liner, impact-shear composite crushing of limestone, basalt and other medium and high hardness materials, the maximum feed size of ≤1000mm, processing capacity of 200-1200t/h, the finished product size of 5-40mm adjustable, the content of needles and flakes <10%. Intelligent monitoring system detects bearing temperature, rotor balance and vibration frequency in real time, automatically adjusts feeding speed and crushing gap, and triggers shutdown protection within 0.5 seconds in abnormal condition, reducing failure rate by 40%. Hydraulic lubrication system (-30℃ low-temperature resistant) and forced air-cooled channel ensure stable operation in high-temperature working conditions, and the energy consumption of the single machine is as low as 0.8kW-h/ton. It can be equipped with pre-screening or dual-power drive module, which is suitable for the head crushing of aggregate production line or the recycling crushing of construction waste, and the comprehensive operation cost is cut down by 30%.

Product Advantage

1: Ultra-long life diamond hammer head:

The use of polycrystalline diamond (PCD) composite hammer head, abrasion resistance than the traditional high chrome alloy to enhance 3 times, life ≥ 5000 hours, hard rock crushing single ton of hammer cost reduced by 65%;

2: Zero downtime fast maintenance technology:

Hydraulic opening device and modular hammer disk design, hammer head replacement takes only 20 minutes, annual maintenance hours reduced by 70%, to support continuous production;

3: High capacity energy-saving output:

Heavy hammer rotor (1200-1800mm) combined with step crushing chamber, processing capacity up to 1200t/h, energy consumption as low as 0.8kW-h/ton, 25% year-on-year power saving;

4: Intelligent safety protection:

Real-time monitoring of rotor vibration and bearing temperature, triggering an abnormal shutdown within 0.5 seconds, reducing the failure rate by 40%, and guaranteeing the safety of the production line;

5: Extreme working condition adaptability:

-30℃ low-temperature lubrication and high-temperature air-cooling system, adapting to the complex scenarios such as open-pit mines, construction waste recycling, etc. The finished product particle size is adjustable from 5-40mm, and the rate of needle flakes is <10%, which can meet the demand for high-standard aggregates.

Crushed product size

Have Any Questions!

Don't Hesitate To Contact Us AnyTime.

REQUEST A QUOTE Contact Us

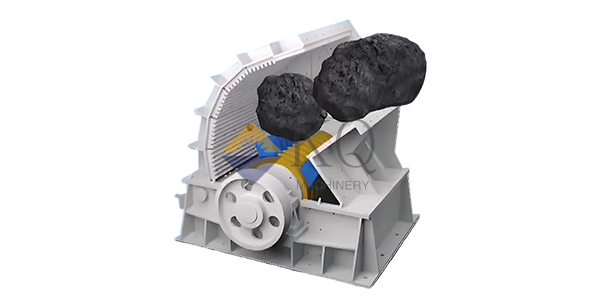

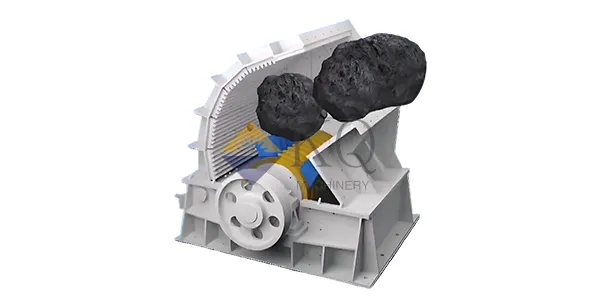

Working Principle

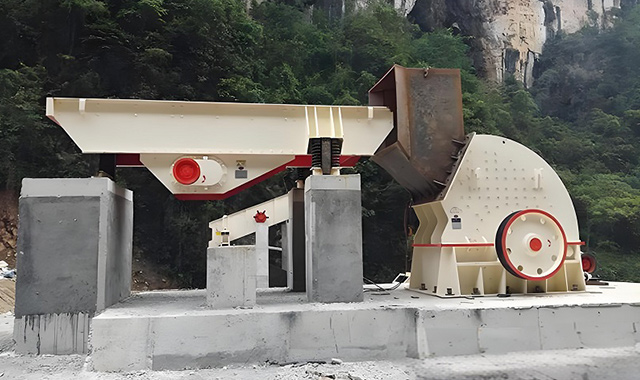

The materials are fed into the crushing chamber evenly by the heavy vibrating feeder (amplitude adjustable from 0-15mm), and the high-speed rotating heavy hammer rotor (diameter of 1200-1800mm, speed of 750-1200rpm) drives the polycrystalline diamond composite hammerhead (PCD hammerhead) to crush the materials with high-speed impact. Under the impact force of the hammer head and the reverse collision of the stepped impact liner, the large material undergoes the multi-stage crushing of “impact - shear - grinding”, and is finally discharged through the bottom grate sieve (with the gap of 5-40mm infinitely adjustable), and the over-limit material is returned to the secondary crushing. Intelligent system monitors the rotor vibration (precision ±0.01mm), bearing temperature and motor load, and dynamically adjusts the feeding speed and the gap of the impact plate to ensure the stability of the finished product particle size (needle and flake <10%). The hydraulic opening structure (3 minutes opening and closing) supports the rapid replacement of the hammer head. Combined with -30℃ low temperature pre-lubrication and air-cooled heat dissipation system, the machine realizes the continuous and efficient crushing of limestone, basalt and other materials (compressive strength ≤ 250MPa), with a capacity of 1200t/h, and the power consumption of a single ton is as low as 0.8kW-h, which is suitable for the highly abrasive working conditions.

Specification

*The output will vary according to different materials, feed particle size and other factors

Model	Specification	Feed Opening Size(mm)	Max Feeding Size(mm)	Capacity(t/h)	Motor Power(kw)	Overall Dimension(mm)
PCZ1310	1310X1050	890X1075	≤650	150-180	160	2950X2250X2495
PCZ1512	1500X1160	1200X900	≤600	250-400	(160kw-4)*2	3220X2520X2800
PCZ1615	1675X1510	1480X1200	≤650	400-800	(220kw-4)*2	3665X2915X3440
PCZ1620	1660X1900	2000X1200	≤800	800-1000	400KW*2	3500X3100X3200
PCZ1820	1800X1964	2000X1200	≤800	800-1500	800KW-6	3474X3822X3520
PCZ2020	1920X2000	2010X1200	≤800	1200-1600	800KW-6	4160X3920X3520
PCZ2125	2100X2486	2600X1690	≤1200	2000-3000	1250KW-6	5057X4565X4666
PCZ3032	3000X3220	3240X1840	≤1200	4500-6000	(1250KW-6)*2	6710X6122X6340

PC0910	900x1000	1070x750	≤150	150-200	(110kw-4)*2	2600x2200x2050
PC1012	1000x1180	1255x810	≤200	250-300	(132kw-4)*2	2800x2400x2300
PC1213	1200x1280	1350x900	≤200	300-350	(160kw-4)*2	2970x2625x2580
PC1216	1270x1490	1530x920	≤250	400-500	(200kw-4)*2	3070x2840x2580
PC1220	1220x1950	2000x920	≤250	500-700	(250kw-4)*2	3080x2280x2580
PC1622	1580x2150	2290x960	≤300	600-900	630kw-6	4095x3495x2960
PC1826	1752X2490	2550X1080	≤300	800-1200	800kw-6	4085X4250X3400
PC2026	2000X2490	2550X1170	≤300	1000-1500	1000kw-6	4490X4260X3725
