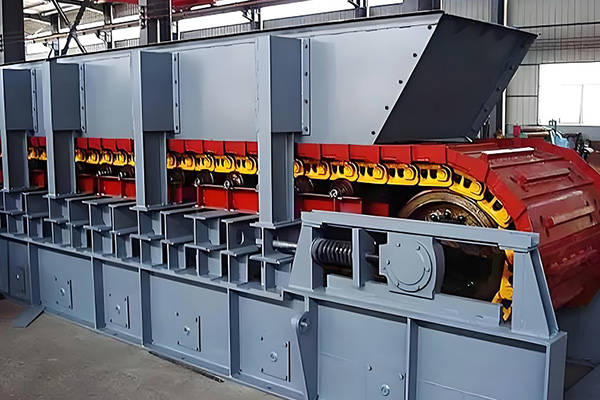

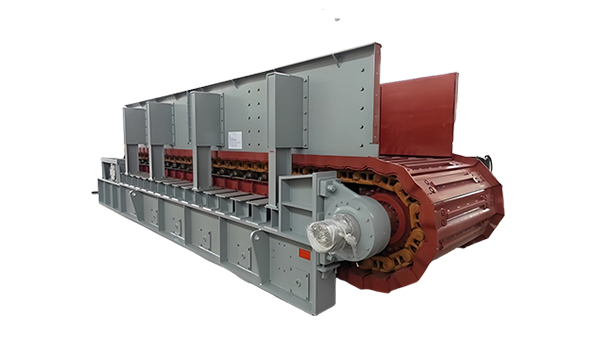

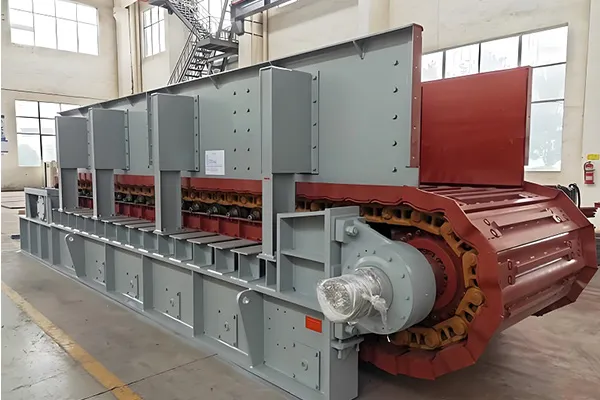

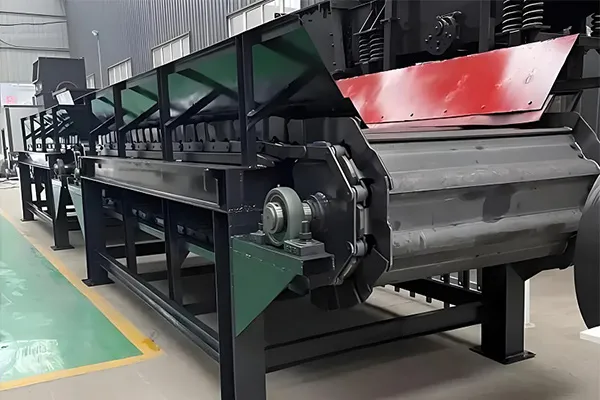

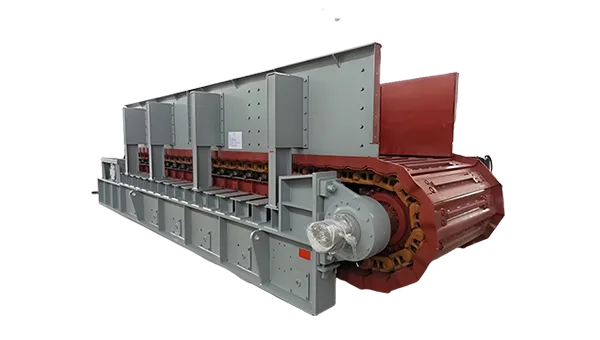

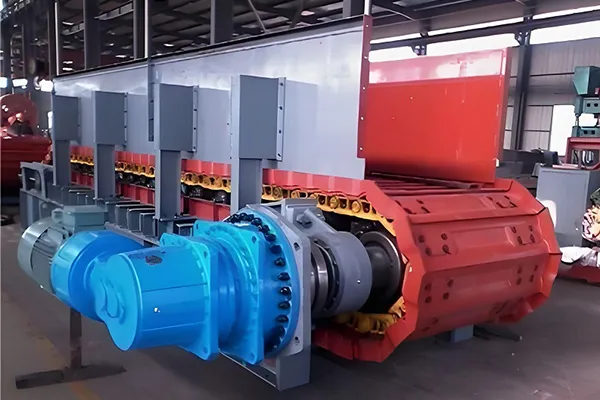

LB Chain Plate Feeder

Application Areas: Basalt, quartzite, cobblestone, granite, construction waste, iron ore, limestone, concrete recycling material

10-500mm

Feed Size

7.5-75KW

Motor Power

30-650T/H

Capacity

WhatsApp: +86 13938447778 kq@kqmachinery.com

60S Quick response

30 min Technical reply

24h design proposal

365 days to receive service needs

Applicable Materials

Basalt, quartzite, cobblestone, granite, construction waste, iron ore, limestone, concrete recycling material
Application Areas

Mining and stone processing, highway and railroad aggregate production, industrial solid waste disposal construction waste resource utilization and other fields

LB Chain Plate Feeder

Chain feeder adopts high-strength alloy chain (tensile strength ≥800MPa) and wear-resistant manganese steel chain plate (thickness 10-30mm, life expectancy ≥5 years), equipped with high-frequency drive motor (power 7.5-75kW), to realize the large angle of inclination (0 ° -25 °) of heavy-duty materials (particle size ≤1500mm, capacity ≤3t/m³) continuous and uniform conveying, handling capacity of 50-1000t/h. Adjustable. Hydraulic automatic tensioning device compensates chain extension in real time, with intelligent lubrication system (interval 0.5-4h can be set), reducing wear and tear by 30%. Fully sealed structure (IP67 protection grade) and impact-resistant guide chute are suitable for mining, metallurgy, building materials and other high-dust, high-temperature (-30℃ to 120℃) harsh working conditions. Modular design supports quick replacement of chain plate unit (single piece replacement ≤ 10 minutes), standard overload protection sensor and foreign body jamming emergency reversal function, failure downtime rate <1%. It can be equipped with frequency conversion speed control, pre-screening grill or acid and alkali resistant coating, and is widely used for precise feeding in the front section of ultra-coarse crushing of raw coal, iron ore, construction waste and so on.

Product Advantage

1、Super load-bearing: chain plate bearing pressure ≥5t/m², suitable for giant material blocks;

2、Intelligent operation and maintenance: hydraulic tensioning + automatic lubrication, maintenance costs down 40%;

3、Coverage of all scenarios: temperature/corrosion/explosion-proof customized options to meet the demanding needs of mining to chemical industry.

Crushed product size

Have Any Questions!

Don't Hesitate To Contact Us AnyTime.

REQUEST A QUOTE Contact Us

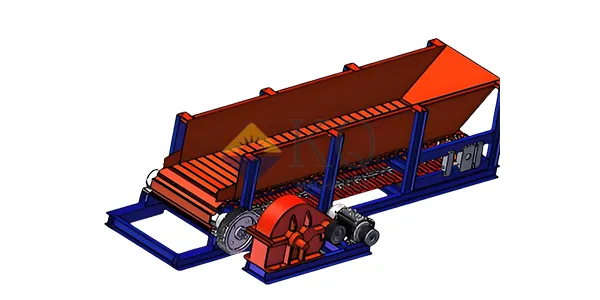

Working Principle

he chain plate feeder drives the motor (power 7.5-45kW) to drive the high-strength alloy chain (pitch 150-400mm) to circulate through the speed reducer, and the manganese steel chain plate (width 800-2000mm) fixed on the chain to form a continuous loading surface, and the materials are evenly distributed on the chain plate through the guide groove, and then move with the chain with a uniform speed (speed of 0.05-1.5m/s) to the discharge port. Hydraulic tensioning device dynamically adjusts the chain tightness, together with the intelligent lubrication system to reduce friction loss, to ensure the smooth transportation of large materials (particle size ≤ 1500mm). Overload sensor monitors the motor torque in real time, when overloaded, it triggers the chain plate to run in the reverse direction for 0.5 seconds to clear the blockage and alarm synchronously. Modularized chain plate set can be partially replaced, fully sealed structure (IP67) and high temperature resistant design (120℃) are suitable for high dust and corrosive working conditions, with a capacity of 50-2000t/h, accurately matching the demand of crusher feed to ensure continuous and efficient operation of the production line.

Specification

*The output will vary according to different materials, feed particle size and other factors

Model	Chain Plate (Width×Length)	Power (kW)	Handling Capacity (T/H)	Applicable Scene	Model
LB-600	600×3000mm	7.5	50-80	Uniform feeding of powder in cement plants	LB-600
LB-800	800×3000mm	11	70-100	Cement plant powder uniform feeding	LB-800
LB-1000	1000×4000mm	15	100-150	Mining Stone Conveyor Feed	LB-1000
LB-1200	1200×6000mm	18.5	200-300	Iron ore rough crusher feed conveyor	LB-1200
LB-1400	1400×6000mm	37	400-600	Heavy Duty Conveying of Raw Coal in Mines	LB-1400
LB-1600	1600×8000mm	55	700-800	Iron and Steel Plant High Temperature Sinter Ore Feed	LB-1600
