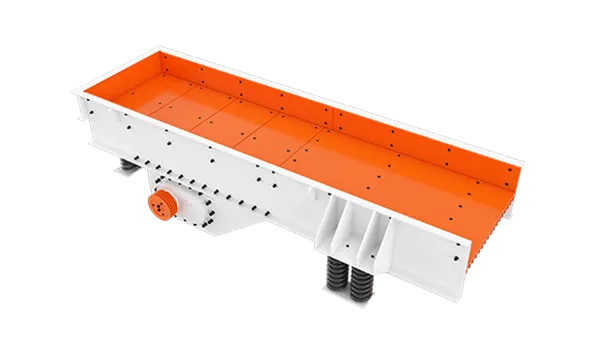

GZD Vibrating Feeder

Application Areas: Basalt, quartzite, cobblestone, granite, construction waste, iron ore, limestone, concrete recycling material

10-500mm

Feed Size

22-75KW

Motor Power

100-600T/H

Capacity

WhatsApp: +86 13938447778 kq@kqmachinery.com

60S Quick response

30 min Technical reply

24h design proposal

365 days to receive service needs

Applicable Materials

Basalt, quartzite, cobblestone, granite, construction waste, iron ore, limestone, concrete recycling material
Application Areas

Mining and stone processing, highway and railroad aggregate production, industrial solid waste disposal construction waste resource utilization and other fields

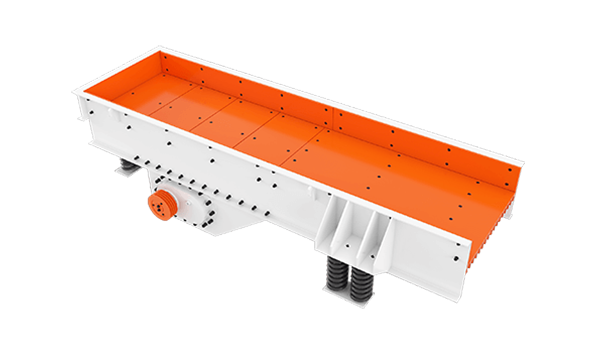

GZD Vibrating Feeder

GZD Vibrating Feeder During the operation of the equipment, the equipment can convey bulk and granular materials from the silo to the crusher evenly and continuously in a given time, increasing the efficiency of the crusher. In stone and gravel production line, it can continuously feed the crushing equipment and roughly screen the materials. It is widely used in crushing and screening equipments in metallurgy, coal, chemical industry, building materials, milling and other industries. It is characterized by smooth vibration, reliable work, simple structure and prevention of dust pollution.

Product Advantage

1：Product design

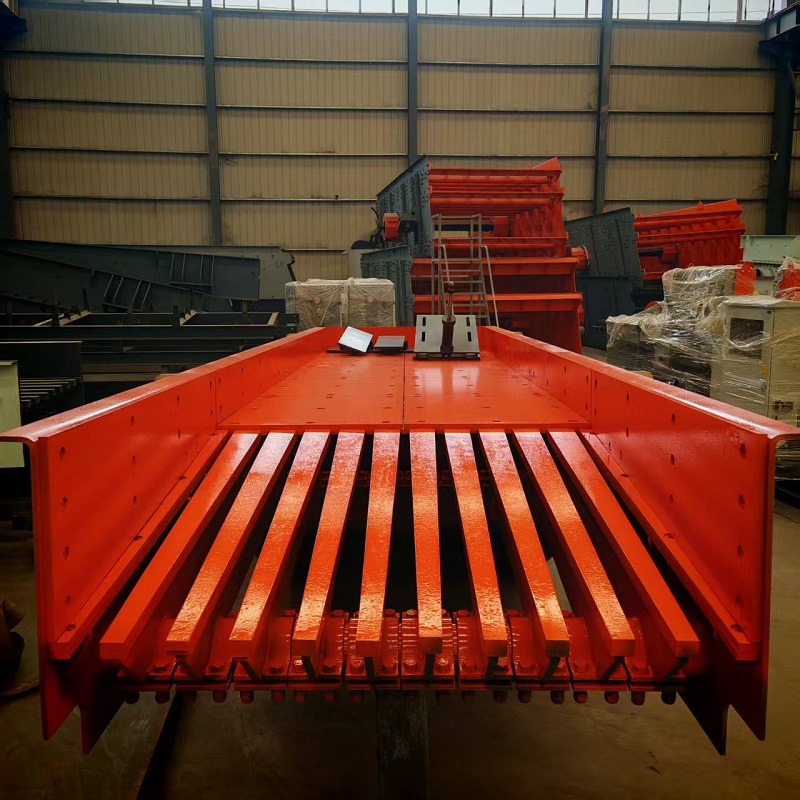

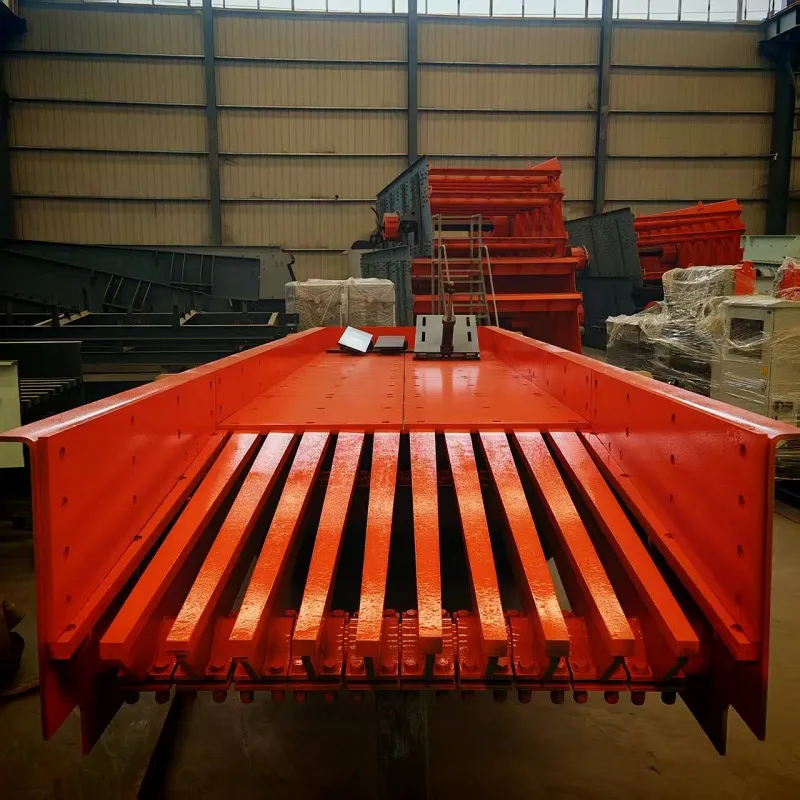

The special grate design can prevent the material from clogging, and play the role of primary screening of the material, so as to improve the output

2：Smooth vibration, reliable work

Spring device buffer body vibration, effectively avoid body damage, prolong service life.

3：High quality motor

Vibrating motor as the source of excitation, low noise, low power consumption, good adjustment performance, no rushing material phenomenon.

Crushed product size

Have Any Questions!

Don't Hesitate To Contact Us AnyTime.

REQUEST A QUOTE Contact Us

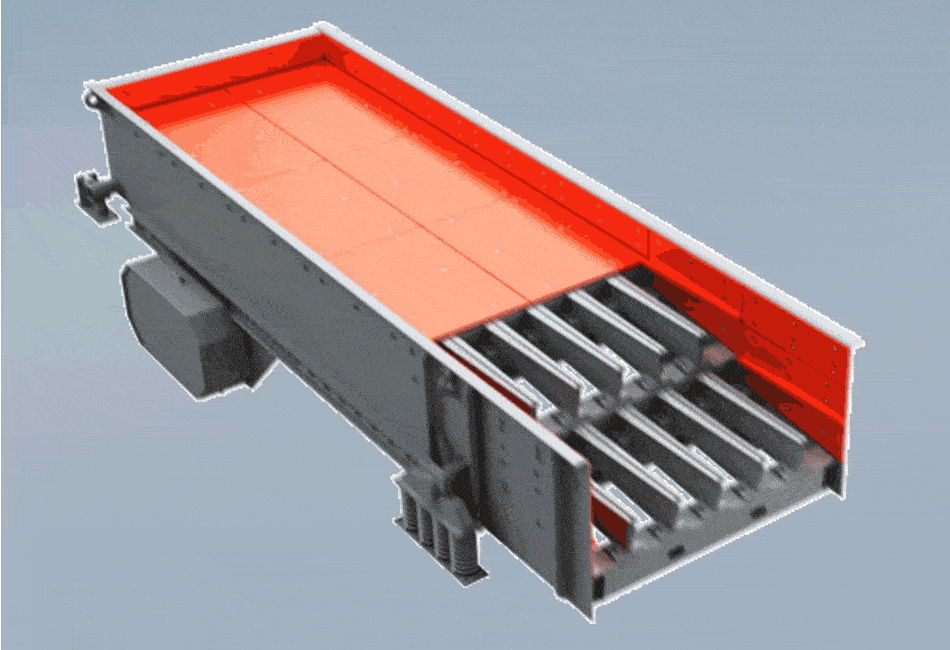

Working Principle

GZD vibrating feeder working principle: through the double vibration motor (power 0.5-15kW) synchronous reverse rotation to produce directional excitation force (amplitude 0-15mm adjustable), drive the trough body to 25-50Hz frequency linear vibration, the material under the action of inertial force along the trough body (length 1.5-6m) continuous jumping forward, and uniformly transported to the next process. Intelligent control system monitors the current load in real time (accuracy ±1%), cuts off the power supply in 0.3 seconds when overloaded and triggers the reverse vibration to prevent clogging, suitable for 50-1500t/h processing capacity. The electric motor drives the eccentric block of the shaker to rotate at high speed through the V-belt. The eccentric block can produce a large eccentric force, and the vibrating screen box will do a certain amplitude of circular motion. The materials on the inclined screen are affected by the impulse transmitted by the screen box, making continuous throwing movement, and the materials smaller than the screen holes pass through the screen holes, so as to realize the grading.

Specification

*The output will vary according to different materials, feed particle size and other factors

Model	Size of Trough(mm)	Feeding Size(mm)	Motor Power(kw)	Capacity(t/h)	Overall Dimension(mm)
GZD-650X2300	650X2300	≤300	1.1X2	80	2300X1360X780
GZD-850X3000	850X3000	≤400	7.5X11	80-120	3110X1800X1600
GZD-960X3800	960X3800	≤500	11-15	120-210	3850X1950X1630
GZD-1100X4200	1100X4200	≤580	18.5	200-430	4400X2050X1660
GZD-1100X4900	1100X4900	≤580	18.5	280-500	5200X2050X1700
GZD-1300X4900	1300X4900	≤650	22	450-600	5200X2350X1750
