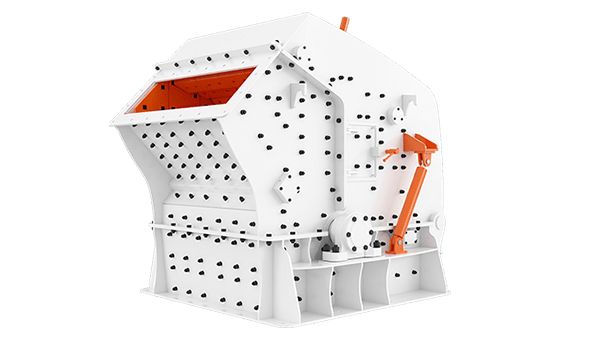

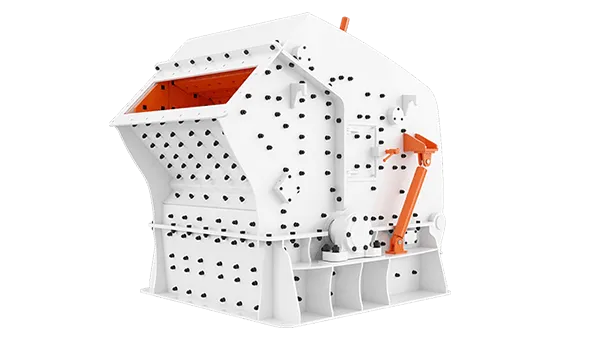

PF Impact Crusher

Application Areas: Side length of 100 ~ 600 mm below the material, compressive strength up to 350 mpa. Limestone, coal gangue, river pebbles, granite, iron ore, etc.

10-50mm

Feed Size

37-220KW

Motor Power

30-550t/h

Capacity

WhatsApp: +86 13938447778 kq@kqmachinery.com

60S Quick response

30 min Technical reply

24h design proposal

365 days to receive service needs

Applicable Materials

Side length of 100 ~ 600 mm below the material, compressive strength up to 350 mpa. Limestone, coal gangue, river pebbles, granite, iron ore, etc.
Application Areas

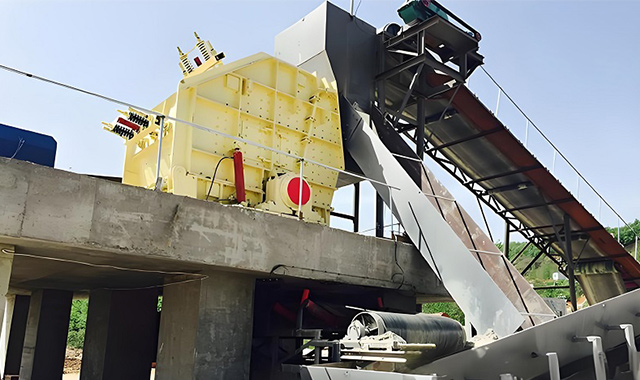

Mainly used in metallurgy, chemical industry, hydropower engineering and other industries.

PF Impact Crusher

An impact crusher is a crushing machine that uses impact energy to crush materials. This crushing equipment can handle various materials with a particle size not exceeding 1000 mm and a compressive strength not exceeding 350 MPa. It has a large crushing ratio, high crushing efficiency, and easy maintenance. The product is cube-shaped and is an ideal processing equipment for aggregates used in highway and hydropower construction. Impact crushers are widely used in highway construction, water conservancy projects, and construction gravel processing due to their stable performance.

Product Advantage

Great Breaking Force The rotor has a high-strength and heavy-duty design, has a significant moment of inertia and impact crushing force, and is more suitable for crushing large materials. One Machine for Two Purposes By adjusting the installation position of the impact rack, the conversion between coarse crushing and medium-fine crushing can be achieved, and one machine can be used for both purposes. Hydraulic Adjustment The gap between the impact plate and the plate hammer is adjusted hydraulically, which is convenient and quick and can effectively control the discharge particle size and good particle shape. Easy Maintenance The frame is simple and convenient to open, making it easy to perform maintenance inspections and replace worn parts inside the machine.

Crushed product size

Have Any Questions!

Don't Hesitate To Contact Us AnyTime.

REQUEST A QUOTE Contact Us

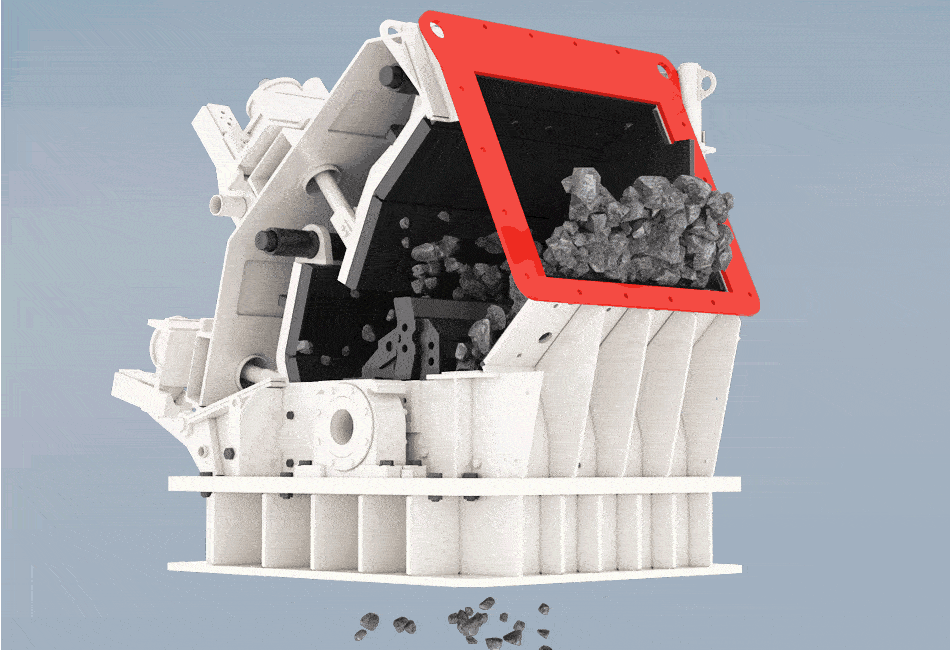

Working Principle

Impact crushers use impact energy to break materials. When working, driven by the motor, the rotor rotates at high speed. When the material enters the blow bar action area, it is crushed by impact with the blow bar on the rotor, thrown to the impact device for grinding again, and bounces back from the impact lining. It goes to the plate hammer action area for re-crushing, and this process is repeated until the material is crushed to the required particle size and discharged from the discharge port. Adjusting the gap between the impact frame and the rotor can change the material discharge particle size and shape.

Specification

*The output will vary according to different materials, feed particle size and other factors

Model	Specification	Feeding Opening Size(mm)	Feeder Size (mm)	Capacity (t/h)
PF-1007	Φ1000 × 700	400 x 730	≤250	15-60
PF-1010	Φ1000 × 1050	400 x 1080	≤300	50-90
PF-1210	Φ1250 × 1050	450 x 1060	≤300	80-150
PF-1214	Φ1250 × 1400	450 x 1440	≤300	100-200
PF-1315	Φ1320 × 1500	550 x 1530	≤350	130-280
PF-1320	Φ1320 × 2000	610 x 1900	≤500	180-400
PF-1520	Φ1500 x 2000	830 x 2040	≤700	300-550
PF-1820	Φ1800 x 2000	1260 x 2040	≤800	600-800
