Application Areas: River pebbles, granite, cobbles, potassium feldspar, shale, sandstone, building stone, iron ore, gold ore and so on.

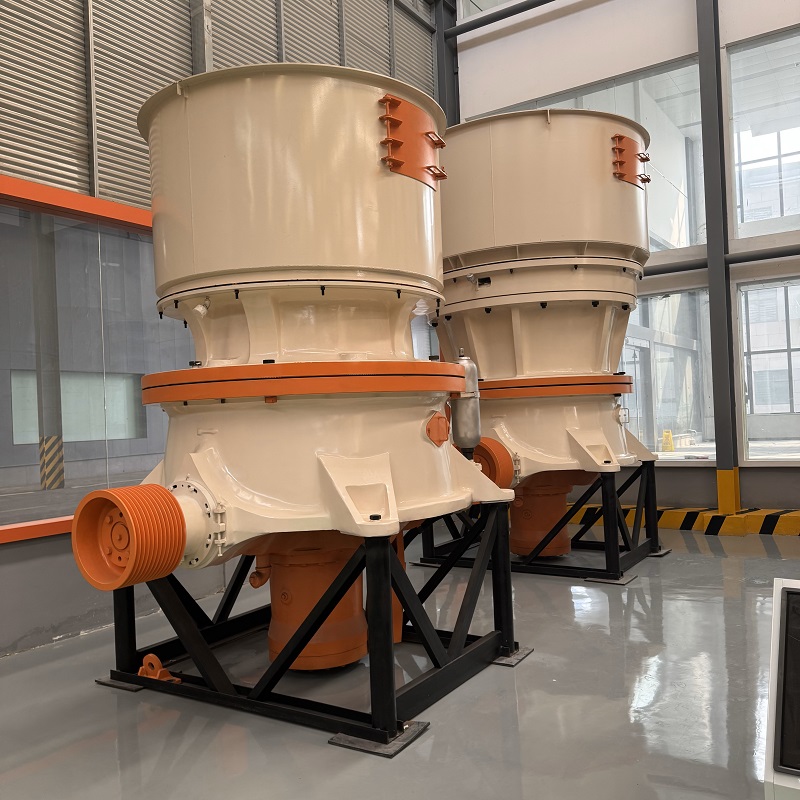

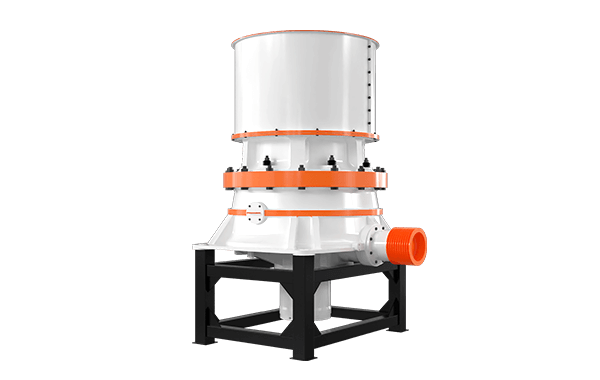

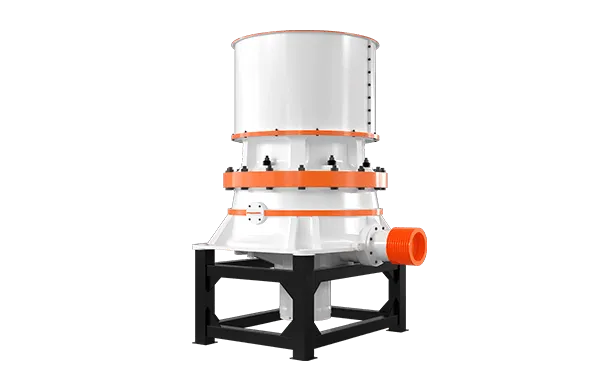

CS series single-cylinder hydraulic cone crusher adopts innovative single-cylinder hydraulic control system, which integrates hydraulic adjustment, overload protection and cavity clearing functions, and is suitable for medium and fine crushing operations. Equipped with heavy-duty spindle structure (600r/min swing times) and high-performance crushing cavity, the machine can handle feed size ≤560mm, realizing high capacity of 45-1200t/h, and the discharge size can be adjusted accurately from 6-41mm by hydraulic device. The standard intelligent TC1000 automatic control system monitors the operation status in real time, and the maintenance efficiency is increased by 40% with the thin oil lubrication system and modularized design. Especially suitable for granite, basalt and other hard rock crushing, the power configuration covers 90-750kW, energy consumption is reduced by 25% compared with traditional models, meets CE, ISO certification standards, is a modernized stone production line of high efficiency and energy saving solutions.
|
|
Five core advantages Reshaping the new standard of single-cylinder crusher
1: High efficiency and energy saving
Laminated crushing technology reduces energy consumption by 25% and saves $20,000-40,000 annually under the same output.
600r/min high stroke rotational speed, the production capacity is increased by 40% compared with the traditional model, up to 1200t/h.
2: Intelligent automation
TC1000 intelligent control system real-time monitoring (bearing temperature ±1℃ precision/vibration value <4mm/s warning)
Hydraulic adjustment system to complete the adjustment of the discharge particle size in 3 minutes (stepless adjustment from 6-41mm)
3: Maintenance revolution
Modularized design shortens the replacement time of core components by 60% (the main frame body can be dismantled in 4 hours).
Thin oil lubrication system extends bearing life by 2.3 times and reduces annual maintenance cost by 40%.
4: Hard Rock Nemesis

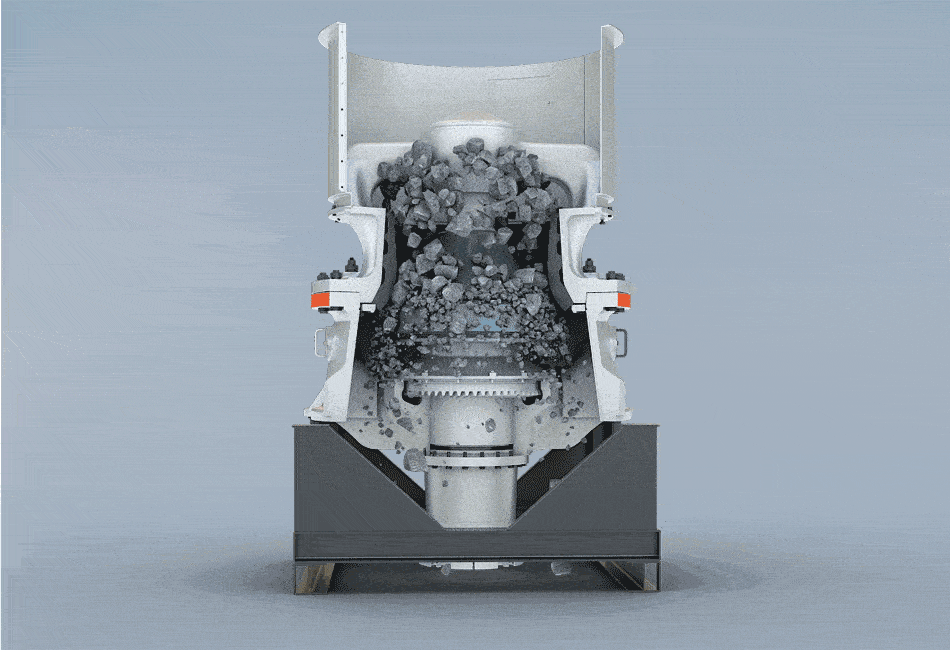

Unique G-shape crushing cavity can handle materials with Mohs hardness class 8 (granite/basalt crushing ratio up to 1:6).
Hydraulic overload protection system can withstand ≤300MPa instantaneous impact load.
5: Safety and Environmental Protection
CE certification system to ensure that the pulse dust removal interface to achieve dust emissions <20mg/m³.
Fully enclosed structure makes the operation noise ≤85dB(A).
|
|
Have Any Questions!
Don't Hesitate To Contact Us AnyTime.
Model | Cavity Type | Maximum feed inlet Size (mm) | Minimum Discharge Opening (mm) | Capacity (t/h) | Maximum installed power (kw) |
CS420 | S1 Extra coarse | 240 | 22 | 85-170 | 90 |
S2 Medium coarse | 200 | 19 | 70-130 | ||
CS420 | H1 Fine | 135 | 10 | 45-130 | |
H2 Medium fine | 65 | 8 | 35-80 | ||
H3 Extra fine | 38 | 4 | 27-60 | ||
CS430 | S1 Extra coarse | 360 | 25 | 120-345 | 160 |
S2 Medium coarse | 300 | 22 | 105-305 | ||
S3 Extra coarse | 235 | 19 | 90-275 | ||
CS430 | H1 Fine | 185 | 13 | 60-210 | |
H2 Medium fine | 90 | 10 | 65-165 | ||
H3 Extra fine | 50 | 6 | 48-105 | ||
CS440 | S1 Extra coarse | 450 | 35 | 255-605 | 250 |
S2 Medium coarse | 400 | 29 | 215-515 | ||
S3 Extra coarse | 300 | 25 | 190-490 | ||
CS440 | H1 Fine | 215 | 16 | 110-395 | |
H2 Medium fine | 110 | 13 | 115-340 | ||
H3 Extra fine | 70 | 8 | 90-225 | ||
CS660 | S1 Extra coarse | 560 | 41 | 355-1050 | 315 |
S2 Medium coarse | 500 | 38 | 305-895 | ||
CS660 | H1 Fine | 275 | 16 | 170-665 | |
H2 Medium fine | 135 | 16 | 190-505 | ||
H3 Extra fine | 65 | 13 | 205-320 |
