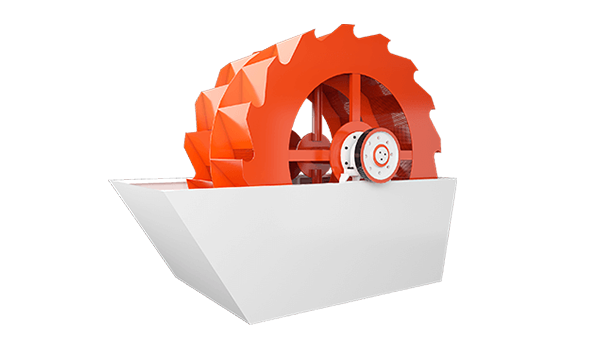

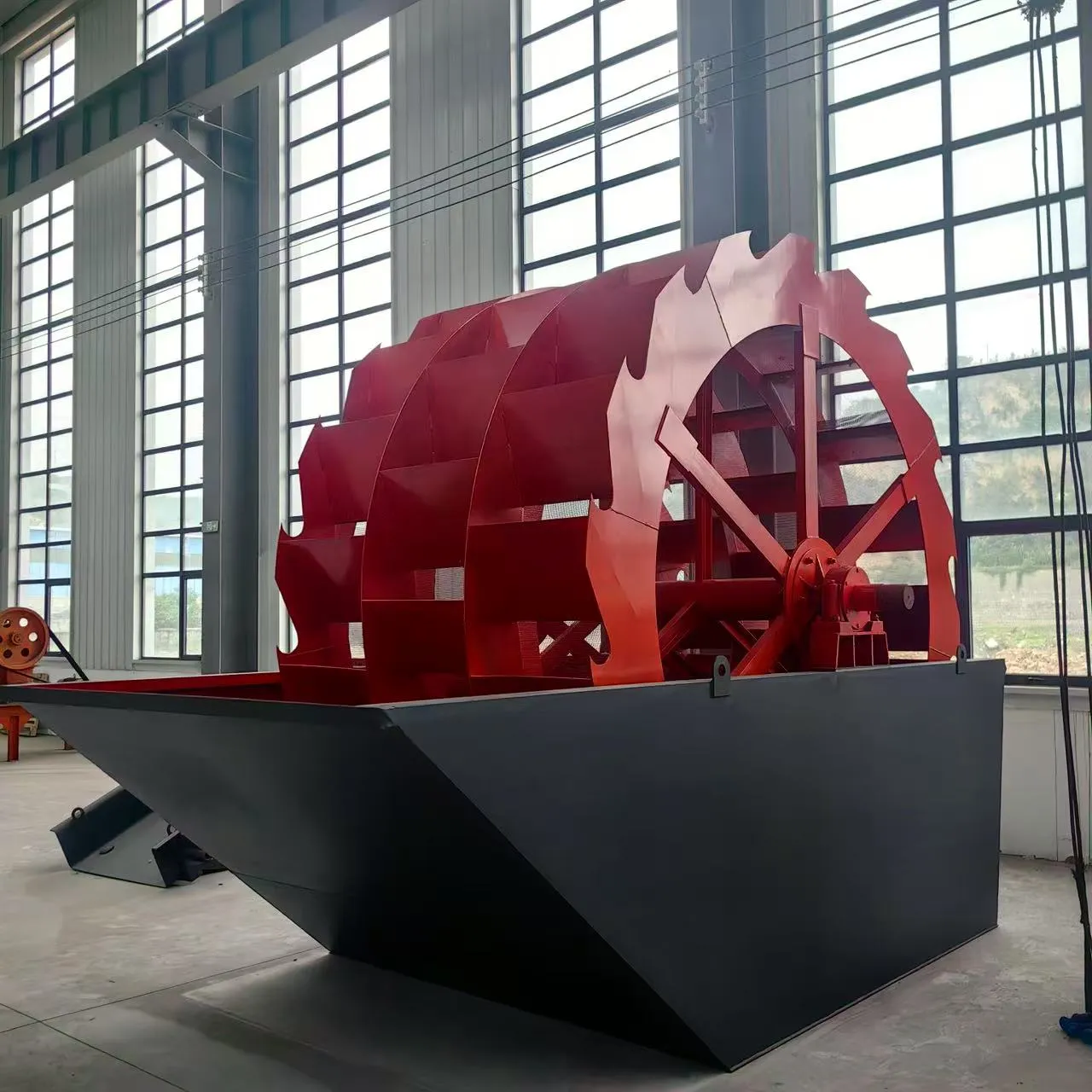

Bucket Wheel Sand Washing Machine

Application Areas: Silica sand, river sand, mechanism sand, construction waste sand, tailing sand and other fine particulate materials

5mm

Feed Size

11-75KW

Motor Power

30-300T/H

Capacity

WhatsApp: +86 13938447778 kq@kqmachinery.com

60S Quick response

30 min Technical reply

24h design proposal

365 days to receive service needs

Applicable Materials

Silica sand, river sand, mechanism sand, construction waste sand, tailing sand and other fine particulate materials
Application Areas

Natural sand and gravel aggregate, mechanism sand (crushed granite, limestone), industrial slag, construction waste recycled aggregate, special working conditions materials

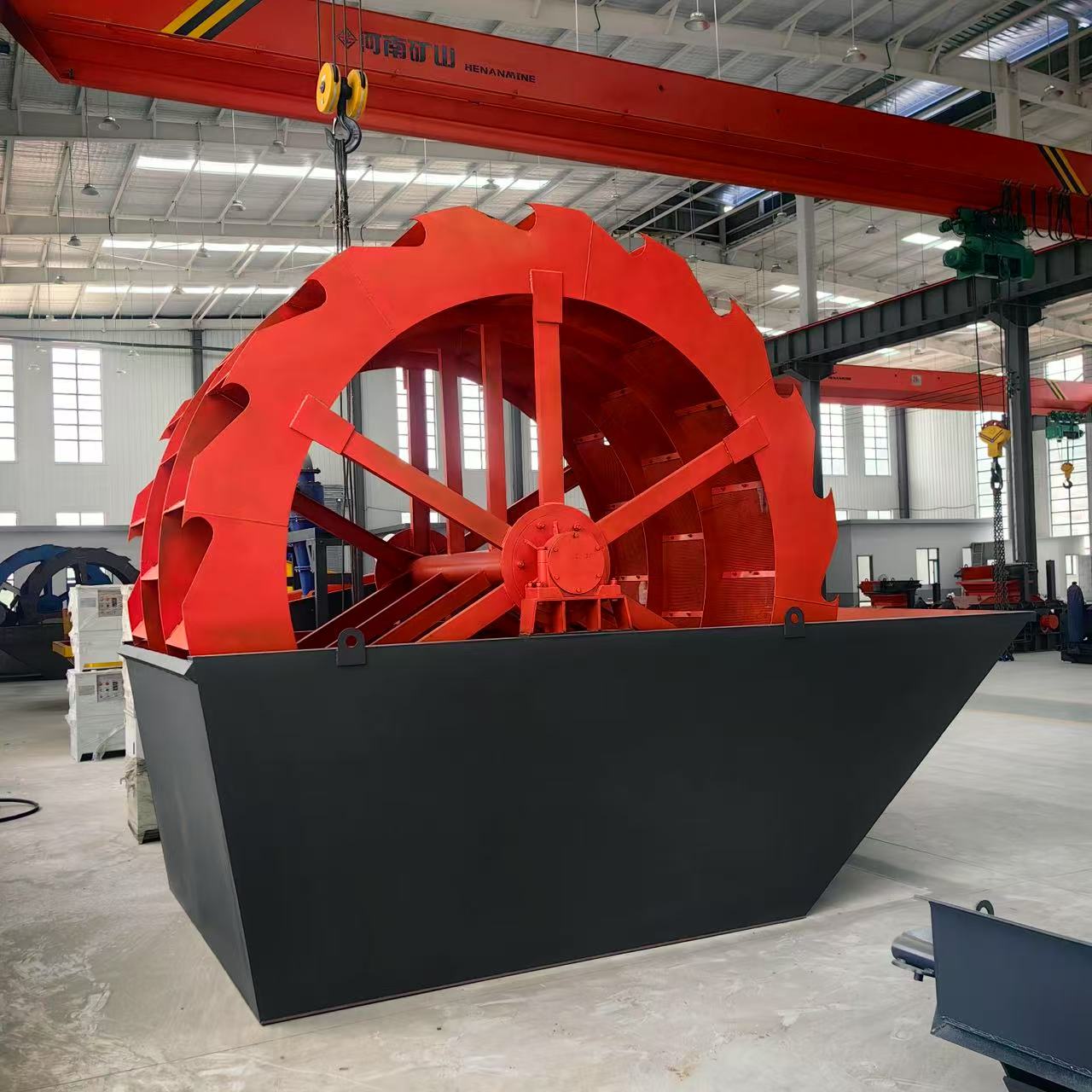

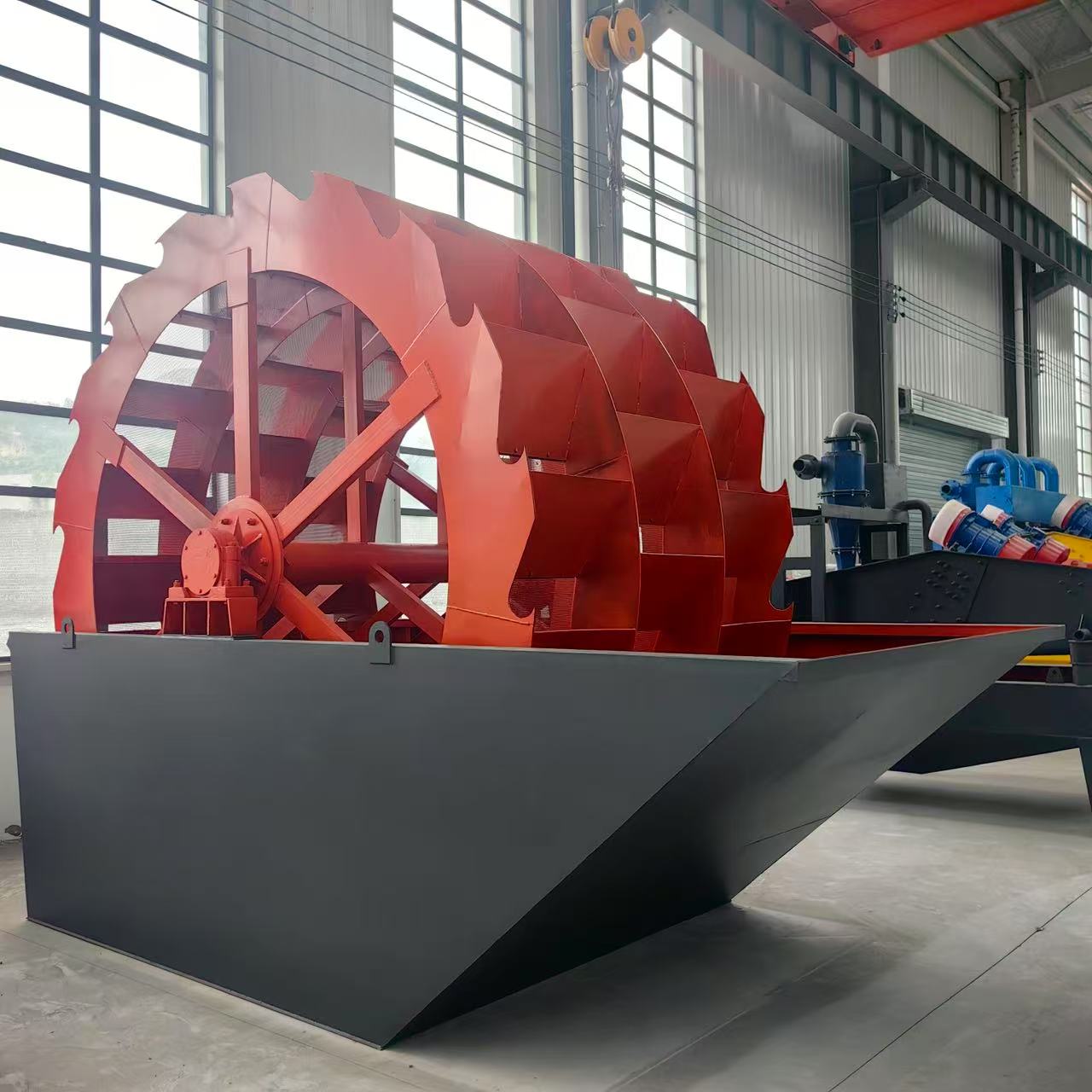

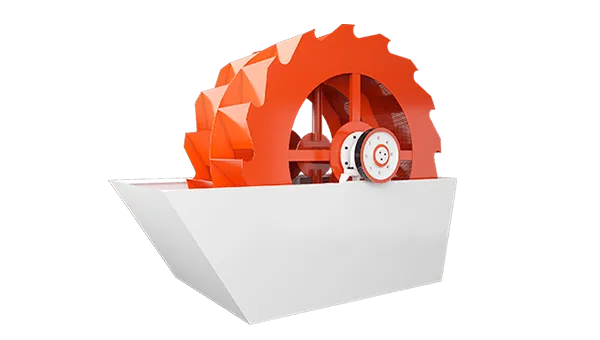

Bucket Wheel Sand Washing Machine

Adopting advanced technology, the sand washing machine is a high-efficiency sand washing equipment developed by combining the actual situation of domestic sand and gravel industry. It is characterized by high washing height, reasonable structure, large output, and less sand loss in the sand washing process. At the same time, the equipment also has the function of sand and stone isolation, so its failure rate is much lower than the current commonly used sand washing machine, which is the first choice for upgrading the domestic sand washing industry. Keqiang sand washing machine adopts special manufacturing materials, which are wear-resistant and corrosion-resistant, and can operate normally in any harsh environment, greatly extending its service life; in addition, the energy-saving effect of the sand washing machine is also very remarkable.

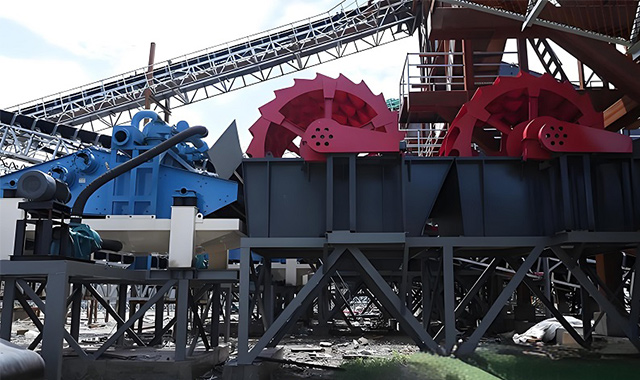

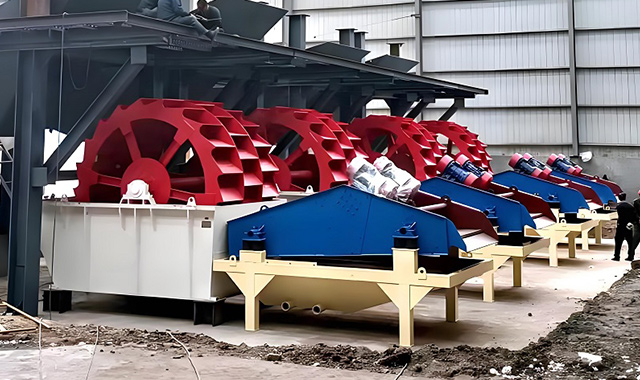

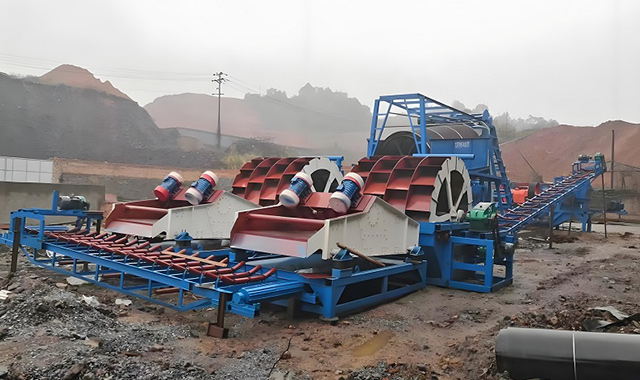

Sand washing machine is a commonly used equipment in artificial sand production line. It is widely used to process silica sand, river sand, yellow sand, sea sand and so on. It is used to remove the dirt and impurities in the sand to achieve the purpose of sand washing, grading and grading up to standard.

Product Advantage

1: Novel sealing structure, fully enclosed oil bath transmission device, adjustable overflow weir plate to ensure that the series of products are durable, good cleaning and dewatering effect, and stable fine-grained products.

2: The machine adopts impeller drive bearing device and water material separation design, which avoids the damage to the machine caused by premature pollution and rusting, so the failure rate is much lower than other commonly used sand washing machines.

3: Except for the screen mesh, the machine has almost no wearing parts and seldom needs maintenance, so the cost of use can be greatly reduced.

4: The cleanliness of the cleaned material is high, no pollution, and the loss of medium and fine sand and stone powder is very small.

Crushed product size

Have Any Questions!

Don't Hesitate To Contact Us AnyTime.

REQUEST A QUOTE Contact Us

Working Principle

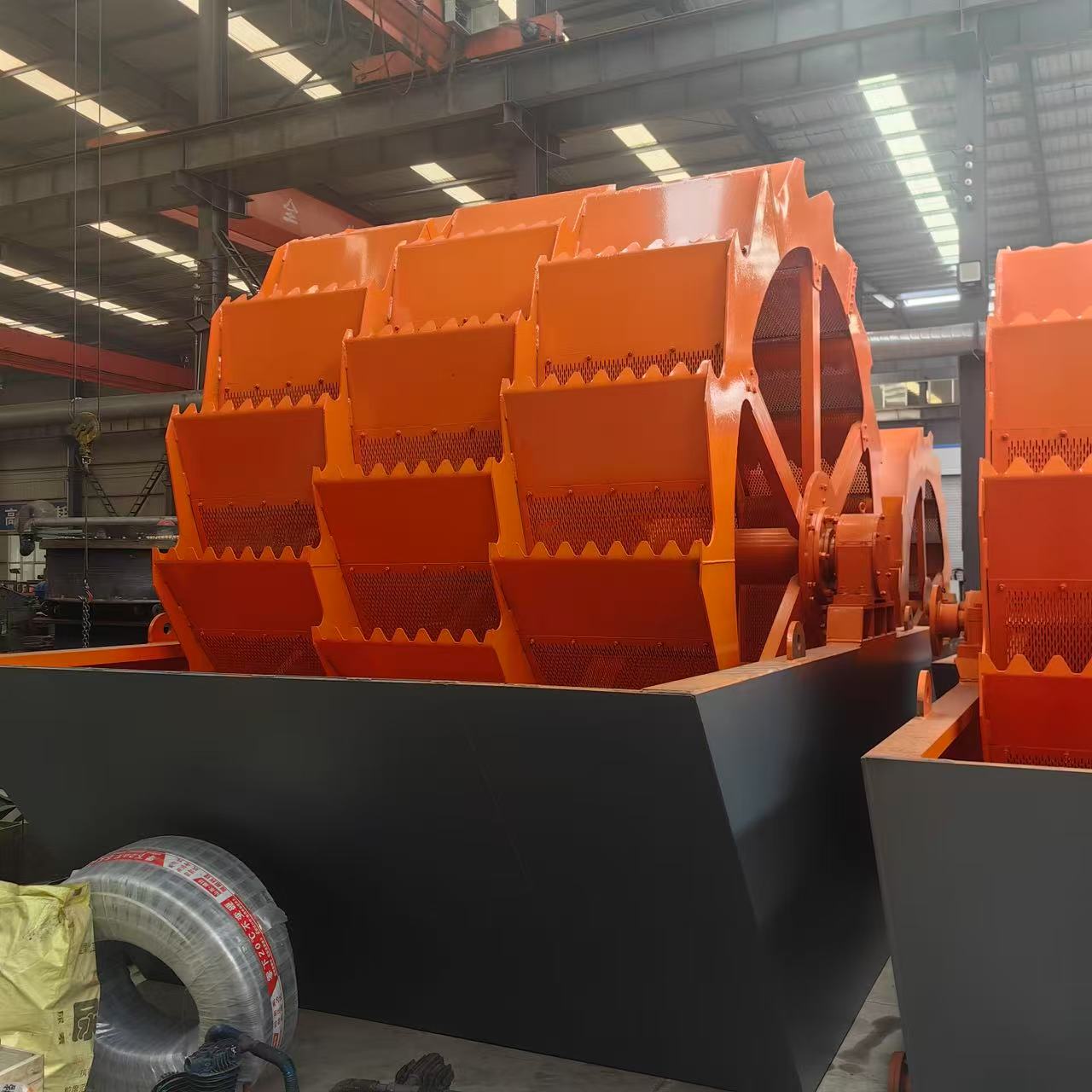

When the sand washing machine works, the motor drives the impeller to rotate slowly after decelerating through the triangle belt and deceleration gear. At the same time, it destroys the water vapor layer covering the sand grains and promotes dewatering; at the same time, it adds water to form a strong water current, which takes away the impurities and foreign materials with small specific gravity in time and discharges them from the overflow cleaning tank to complete the cleaning effect. Clean gravel is taken away by the blades, and the gravel is poured into the discharge tank from the rotating impeller to complete the cleaning of gravel.

Specification

*The output will vary according to different materials, feed particle size and other factors

Model	Impeller(mm)	Feeding Size(mm)	Capacity(t/h)	Power(kw)
XSD2610	Ф2600	≤10	30-60	7.5
XSD2900	Ф2900	≤10	50-90	15
XSD3016	Ф3000	≤10	80-120	18.5
XSD3220	Ф3000	≤10	120-200	22
XSD3620	Ф3600	≤10	150-280	30
